Comprehensive diagram support with Modelio

A full range of diagrams for comfortable, productive and consistent modeling.



Modelio diagram support

Modelio provides clearly understandable diagrams, semantic diagram editors and live model consistency checks, to guarantee the essential cohesion between all views and models in the repository. Modelio supports several UML diagrams, as well as additional diagrams such as Business Process, Requirement or Enterprise Architecture diagrams.

The following diagrams are supported by Modelio:

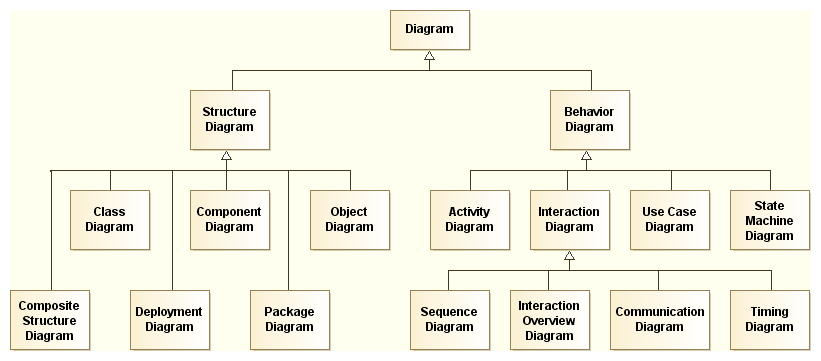

Modelio diagram support closely respects the UML2 standard, which recommends the breakdown of models into the following diagrams:


modelio_diagram_support



However, it is worth noting that the standard is not inflexible regarding this breakdown, and other diagram combinations are authorized. And for this reason, as well as providing support of the diagrams mentioned above, Modelio also brings additional flexibility to diagram definition, by enabling extra elements to be introduced into diagrams, using the drag & drop feature (for example, to represent traceability or responsibilities).


Modeling extensions supported by Modelio

Modelio also supports a large number of modeling extensions, such as SysML, SoaML, U2TP, MARTE, TOGAF, and many others. Have a look at our SysML example...


Take a tour of the Modelio diagrams

Here at Modeliosoft, we believe the best way to show you the extent of the diagram support provided by Modelio is by taking you on a guided tour that brings you some real examples of the use of Modelio diagrams for various different modeling needs.

To follow our guided tour, either click on one of the Modelio diagram types in the list above, or click on the "Next" button at the bottom of each page.

Enjoy your tour!
