Delivery of Modelio 1.1.1
Modelio 1.1.1 – build 20100125
More platforms supported
Modelio 1.1.1 is now available on the following platforms:
Note: Please note that the upgrade (1.1 >> 1.1.1) requires a new license key as some modules in the new version come with new features.
Please contact Modeliosoft with your maintenance contract number to request your new license.
Introducing new features!
Modeler

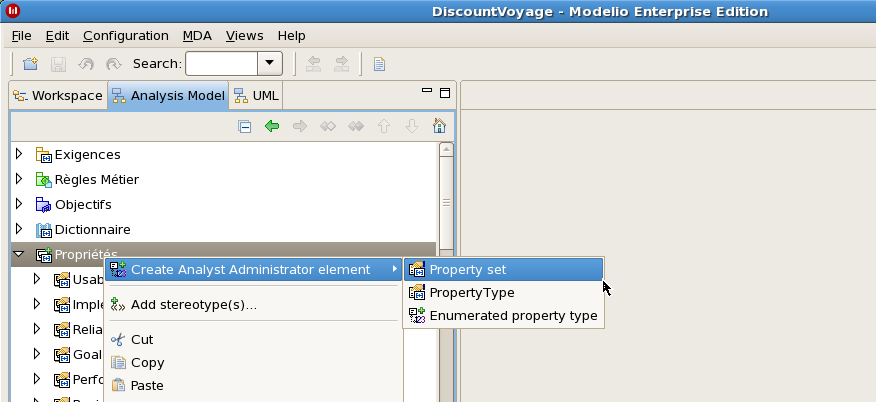

A specific properties explorer has been added to the Analysis Model view for the Analyst Administrator module. The creation of properties and properties sets is now directly at hand in a dedicated context menu.

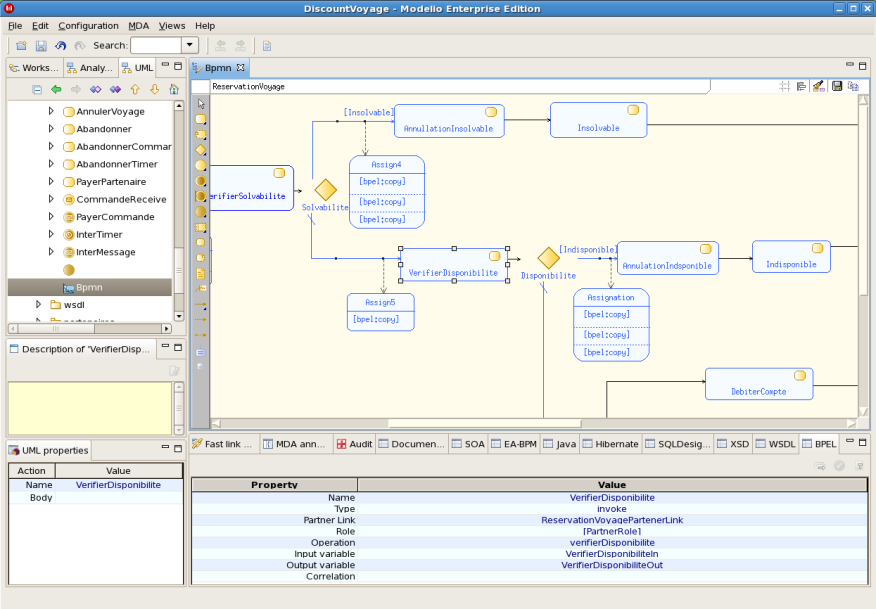

BPEL Designer
The new BPEL Designer module is dedicated to modeling the BPEL process from a BPMN process by adding BPEL-specific information to the BPMN model. It also includes a validation feature and a generator of BPEL files.

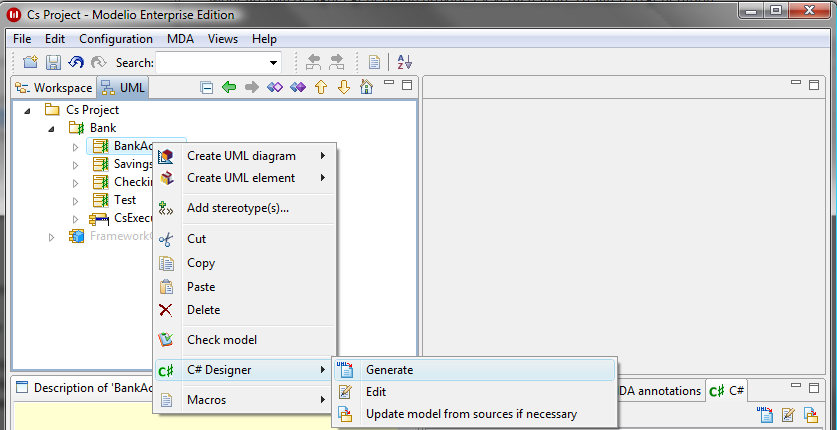

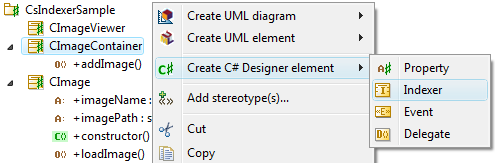

C# Designer
New C# Designer module, providing a complete range of features dedicated to C# development, including C# code, standard C# format documentation and makefile generation from UML2 models. It also provides compilation services, .exe or .dll files reverse, and a coupling with Visual Studio.

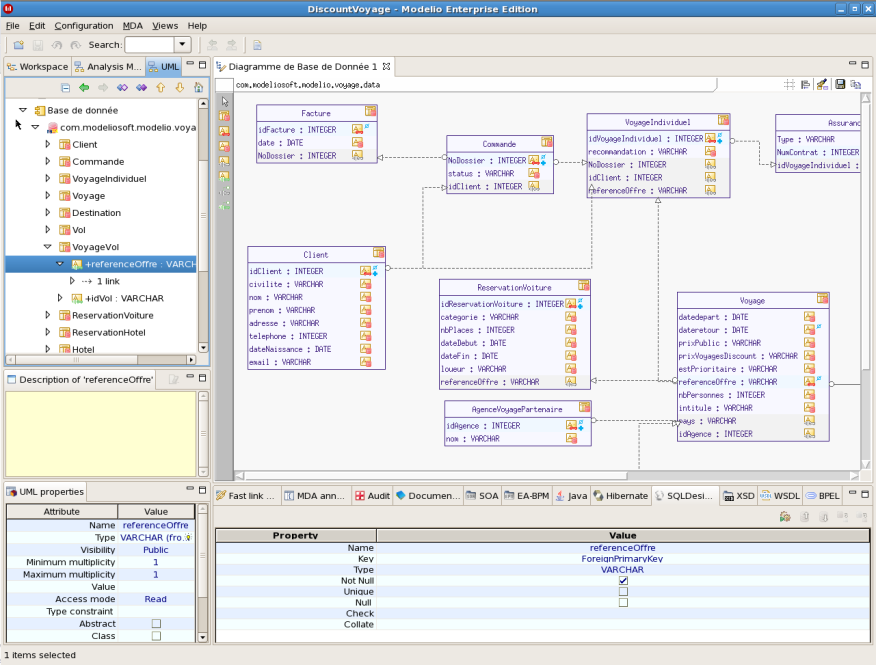

SQL Designer
Modelio 1.1.1 introduces a new SQL Designer module. It is used to model databases at conceptual and logical level. It includes an SQL scripts generator and provides reverse features for SQL scripts.

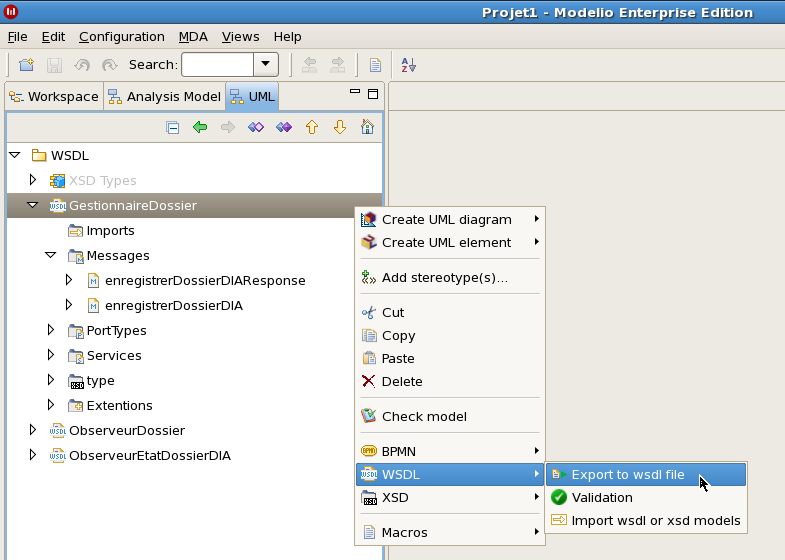

WSDL Designer
The WSDL Designer module is dedicated to modeling WSDL models. It includes a generator used to produce and export .wsdl files and a reverse tool to reverse WSDL schemas. It also provides a validation feature.
