4.14 Block "PressureDevice"
from Package Overview.Global System.Structure
Inherits from: Device
IBD-PressureDevice

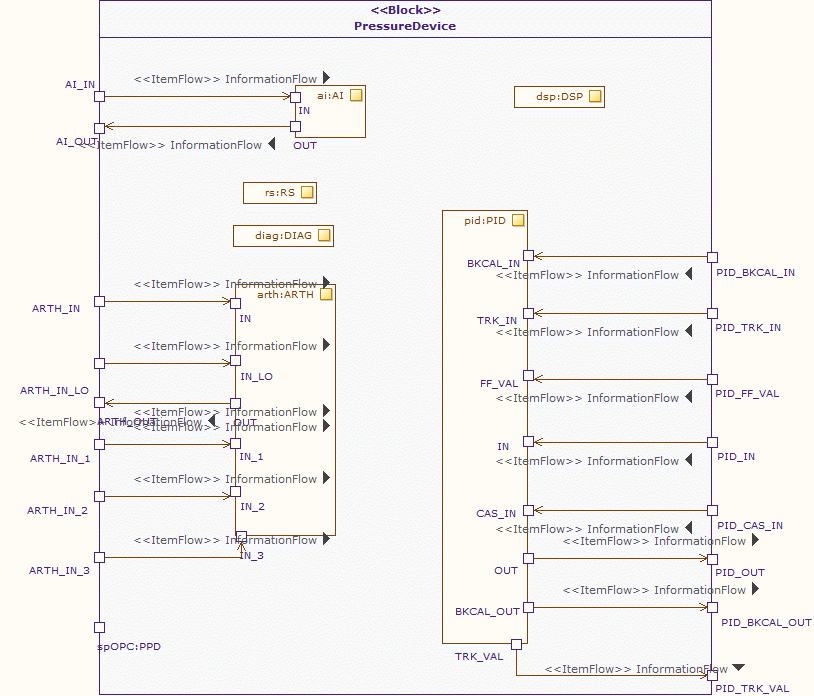

Figure 12 IBD-PressureDevice
INOUTairsdiagININ_LOOUTIN_1IN_2IN_3arthdspBKCAL_INTRK_INFF_VALINCAS_INOUTBKCAL_OUTTRK_VALpidPressureDevice
Table 1 FlowPorts of Block "PressureDevice"
Name
Type
Description
ARTH_IN
ARTH_IN_LO
ARTH_OUT
ARTH_IN_1
ARTH_IN_2
ARTH_IN_3
PID_BKCAL_IN
PID_TRK_IN
PID_FF_VAL
PID_IN
PID_CAS_IN
PID_OUT
PID_BKCAL_OUT
PID_TRK_VAL
AI_IN
AI_OUT
Table 1 Ports of Block "PressureDevice"
Name
Type
Description
spOPC
PPD
Table 1 Parts of Block "PressureDevice"
Name
Type
Description
ai : [1..1]
AI
rs : [1..1]
RS
diag : [1..1]
DIAG
arth : [1..1]
ARTH
dsp : [1..1]
DSP
pid : [1..1]
PID
spOPC : [1..1]
PPD
Table 1 Ports of Class "PressureDevice"
Name
Requires
Provides
spOPC
Interface PD_Cmd
Interface PD_Data
