4.24 Block "ARTH"
from Package Overview.Global System.Structure
PAR-Detailed ARTH Block

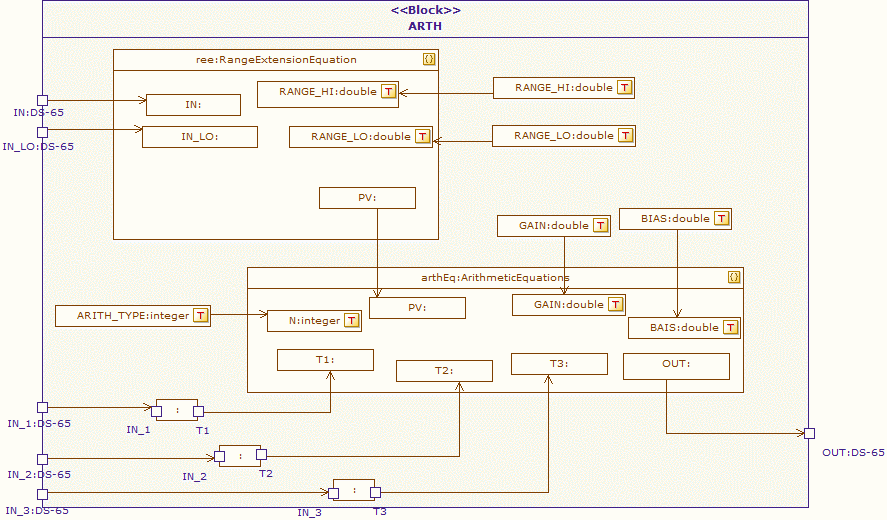

Figure 13 PAR-Detailed ARTH Block
RANGE_HIPVININ_LORANGE_LOreeOUTPVGAINBAIST1T2T3NarthEqRANGE_HIRANGE_LOBIASGAINT1IN_1IN_2T2IN_3T3ARITH_TYPEARTH RANGE_HIPVININ_LORANGE_LOreeOUTPVGAINBAIST1T2T3NarthEqRANGE_HIRANGE_LOBIASGAINT1IN_1IN_2T2IN_3T3ARITH_TYPEARTH RANGE_HIPVININ_LORANGE_LOreeOUTPVGAINBAIST1T2T3NarthEqRANGE_HIRANGE_LOBIASGAINT1IN_1IN_2T2IN_3T3ARITH_TYPEARTH
Table 1 FlowPorts of Block "ARTH"
Name
Type
Description
IN
DS-65
IN_LO
DS-65
OUT
DS-65
IN_1
DS-65
IN_2
DS-65
IN_3
DS-65
Table 1 Parts of Block "ARTH"
Name
Type
Description
ree : [1..1]
RangeExtensionEquation
arthEq : [1..1]
ArithmeticEquations
RANGE_HI : [1..1]
double
RANGE_LO : [1..1]
double
BIAS : [1..1]
double
GAIN : [1..1]
double
: [1..1]
: [1..1]
: [1..1]
ARITH_TYPE : [1..1]
integer
