Importing and exporting XML files

The "Import Analyst model" command imports the elements contained in a specified XML file into the element on which the command is being run.

The "Export Analyst model" command exports an element and the elements it contains into an XML file. This XML file is then available for future XML file import operations.

These commands can only be run on analyst containers.

Importing/exporting XML files

Steps:

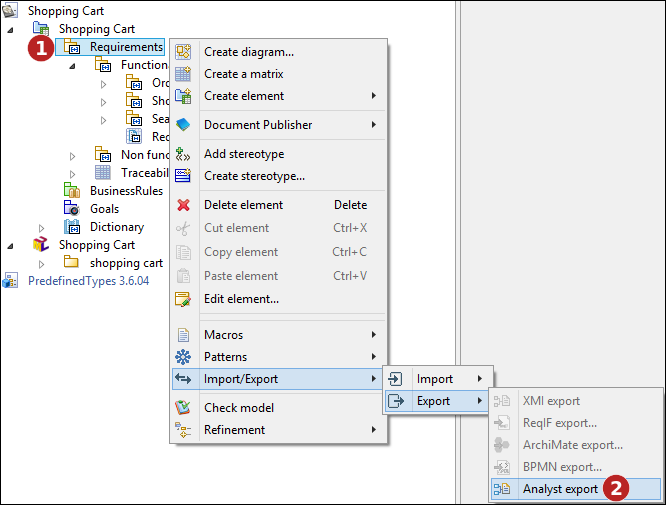

Right-click on the element you wish export/import.
Use either the Export or Import Analyst model commands from the 'Import/Export' menu.

DTD structure

The following is the DTD used in the import/export of Analyst elements.

<?xml version="1.0" encoding="UTF-8"?>
        <!--
        ***********************************************
        ** XML Requirement exchange DTD **
        ** Copyright Modeliosoft 2008-2020 **
        ***********************************************
        -->
        <!ELEMENT RequirementsModel (Info*, RootPropertySet, RequirementContainer?, Dictionary?, Info*)>
         <!ATTLIST RequirementsModel
        Origin CDATA #REQUIRED
        >
        <!ELEMENT RootPropertySet (PropertySet*, RootEnumeration)>
        <!ELEMENT PropertySet (Info*, Description?, Property*)>
         <!ATTLIST PropertySet
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT Property (Info*, Description?)>
         <!ATTLIST Property
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        Type (integer | text | multiText | date | enumeration | real) #REQUIRED
        DefaultValue CDATA #IMPLIED
        EnumerationTypeID IDREF #IMPLIED
        isEditable (true | false) #IMPLIED
        applicableFor (Containers | Requirements | ContainersAndRequirements) #IMPLIED
        >
        <!ELEMENT Description (#PCDATA)>
        <!ELEMENT Info (#PCDATA)>
         <!ATTLIST Info
        Vendor CDATA #REQUIRED
        Key CDATA #REQUIRED
        Value CDATA #IMPLIED
        >
        <!ELEMENT RootEnumeration (Enumeration*)>
        <!ELEMENT Enumeration (Description?, (Info | EnumerationLitteral)*)>
         <!ATTLIST Enumeration
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT EnumerationLitteral (Info*, Description?)>
         <!ATTLIST EnumerationLitteral
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT RequirementContainer (Info*, Description?, (PropertyValue | Info | RequirementContainer | BusinessRuleContainer | GoalContainer | Requirement | BusinessRule | Goal)*, Traceability*)>
         <!ATTLIST RequirementContainer
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        PropertySetID IDREF #IMPLIED
        >
        <!ELEMENT BusinessRuleContainer (Info*, Description?, (PropertyValue | Info | BusinessRuleContainer | BusinessRule)*, Traceability*)>
         <!ATTLIST BusinessRuleContainer
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        PropertySetID IDREF #IMPLIED
        >
        <!ELEMENT GoalContainer (Info*, Description?, (PropertyValue | Info | GoalContainer | Goal)*, Traceability*)>
         <!ATTLIST GoalContainer
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        PropertySetID IDREF #IMPLIED
        >
        <!ELEMENT Dictionary (Info*, Description?, (Info | Dictionary | Term | PropertyValue)*, Traceability*)>
         <!ATTLIST Dictionary
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        PropertySetID IDREF #IMPLIED
        >
        <!ELEMENT Requirement (Info*, Description?, (Info | PropertyValue | Traceability)*)>
         <!ATTLIST Requirement
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT BusinessRule (Info*, Description?, (Info | PropertyValue | Traceability)*)>
         <!ATTLIST BusinessRule
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT Goal (Info*, Description?, (Info | PropertyValue | Traceability)*)>
         <!ATTLIST Goal
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT Term (Info*, Description?, (Info | PropertyValue | Traceability)*)>
         <!ATTLIST Term
        ID ID #REQUIRED
        Name CDATA #REQUIRED
        >
        <!ELEMENT PropertyValue (Info*)>
         <!ATTLIST PropertyValue
        PropertyID IDREF #REQUIRED
        Value CDATA #REQUIRED
        >
        <!ELEMENT Traceability (Info*)>
         <!ATTLIST Traceability
        DestinationID IDREF #IMPLIED
        >
