AnalystProject
Working space for the requirements model. The AnalystProject owns PropertyContainer, the root RequirementContainer and the root Dictionary. The AnalystProject belongs to a Project.
: AnalystProject (architecture_autodiagram)

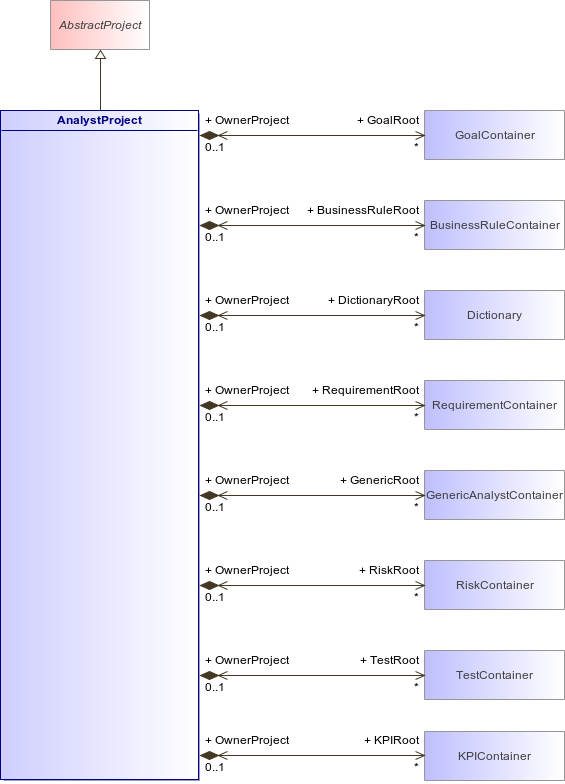

Figure 4 : AnalystProject (architecture_autodiagram)
AnalystProjectGoalContainerBusinessRuleContainerDictionaryRequirementContainerGenericAnalystContainerRiskContainerTestContainerKPIContainer
Association
Description
GoalRoot : GoalContainer [0..*]
BusinessRuleRoot : BusinessRuleContainer [0..*]
DictionaryRoot : Dictionary [0..*]
RequirementRoot : RequirementContainer [0..*]
GenericRoot : GenericAnalystContainer [0..*]
RiskRoot : RiskContainer [0..*]
TestRoot : TestContainer [0..*]
KPIRoot : KPIContainer [0..*]
