Creating a document

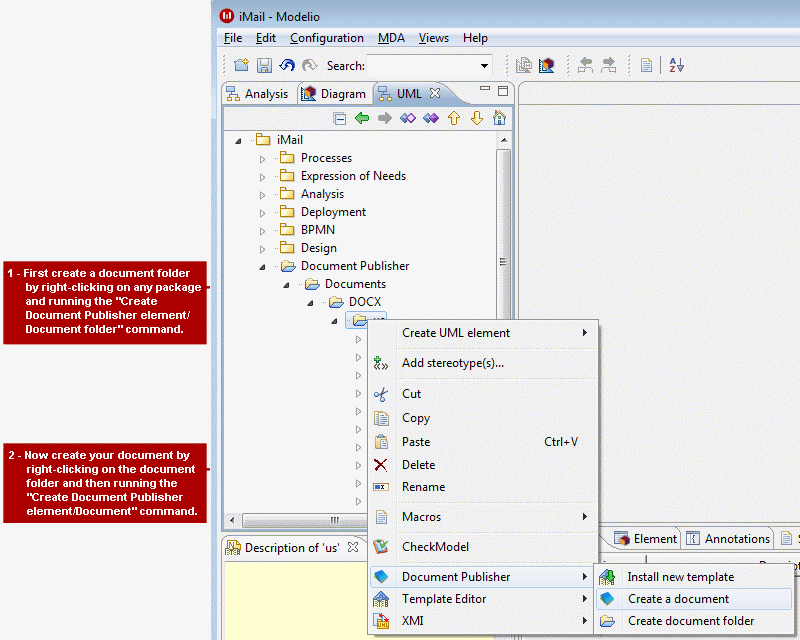

Within a Modelio model, a document is the link between the document template and the elements that are to feature in the generated documentation. Documents are used to add specific information (title, author, …​) or to modify the format used. At least one document must be created before generating documentation.

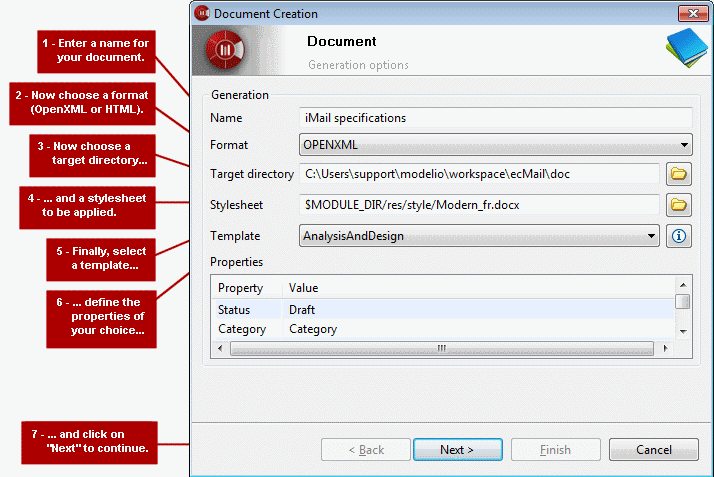

The "Document creation" window then appears. In this window, you can define the generation options and the content of your document. Let’s start by defining the generation options:

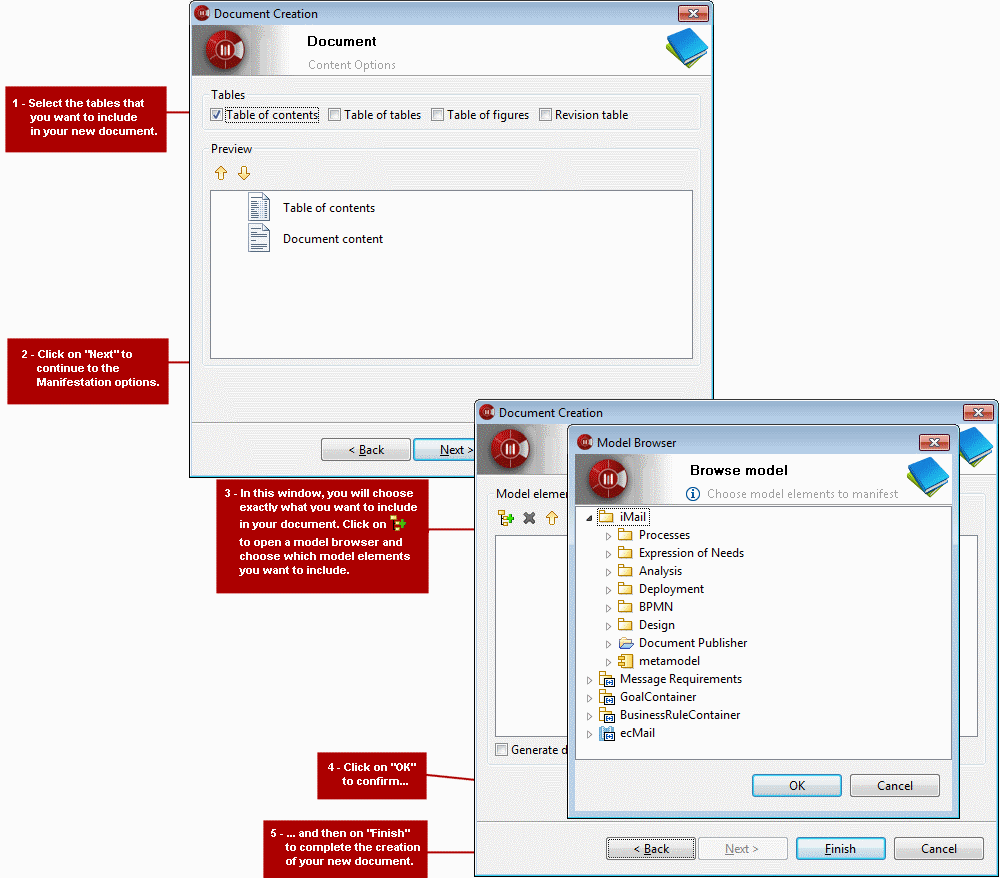

You’re now ready to define the content of your document, as shown below.

Note: The document creation wizard is similar to document edition.
