Before starting

Before an application can be run from a compilation artifact, the application in question must have been compiled. The Jar file must also have been built.

The {JavaMainClass(< FullClassPath >)} tagged value is used to specify the main class of the application. This class will be used when the application is launched from Modelio.

Running an application from a compilation artifact

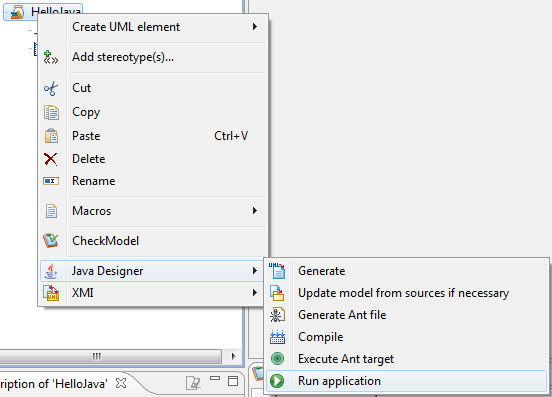

To run an application from a compilation artifact, simply carry out the steps shown in the figure below.


Steps:

  1. Select the compilation artifact (in our example, the "HelloJava" jar file).

  2. In the "Java" tab, click on the imageicon. The application is then run.
