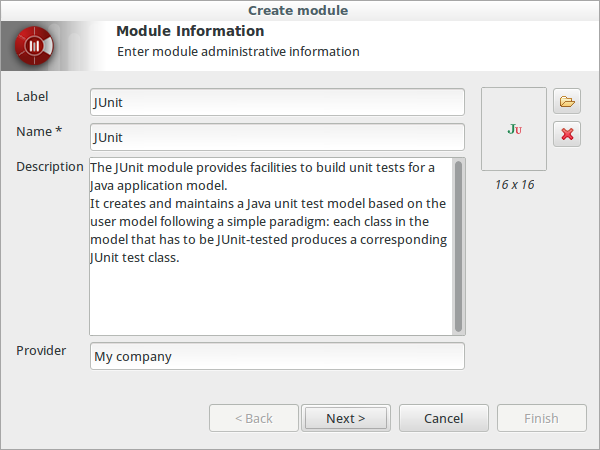

Module information dialog box
-
Label: Enter the module label
-
Name: Enter the name of the module. Only the aphanumeric characters and '\_'' are permitted. Note: This field is filled automatically
-
Description: Enter a quick description of the module’s features.
-
Provider: Enter the name of the module provider
-
Icon: Select an 16x16 icon

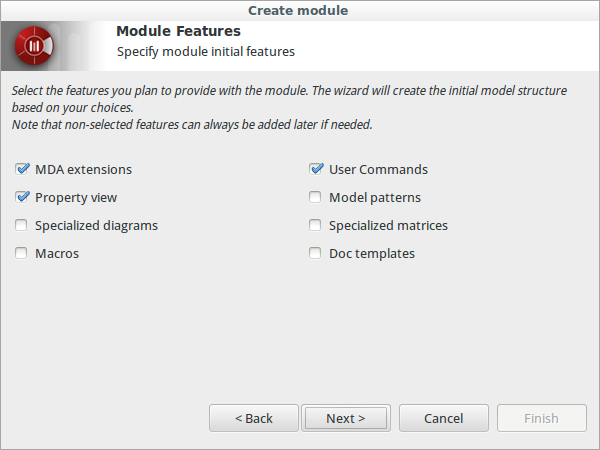

Module Feature dialog box
Select the features that will be available for the module at the creation. The non-selected feaztures can be added later.
Features | Description |
---|---|
MDA extensions |
Allow to define MDA extensions such as Stereotypes, note types, etc. |
Property page |
Allow to provide a dedicated Property view in the Modelio GUI. |
Specialized diagrams |
Allow to defines specialized diagram types to extend Modelio. |
Macros |
Some macros can be be added to the project macro catalog. |
User Commands |
Allow to define the end-user command accessible in the module’s GUI. |
Model patterns |
Allow to defines some model patterns to be made available to the end-user. |
Specialized matrices |
Allow to defines some specialized matrix types to extend Modelio. |
Document templates |
Allow to defines some Document Publisher templates to be made available to the end-user for specific documentation generation. |

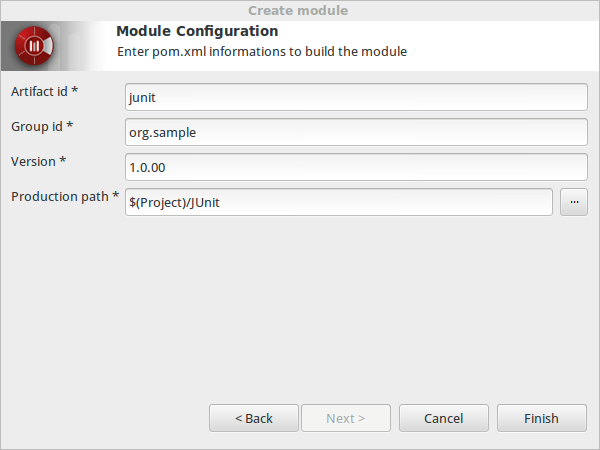

Module Configuration dialog box
The Modelio Studio uses maven to build the module. Maven information must be provided:
-
Artifact id: It is usually a nam with lowercase letters.
note: Only alphanumeric characters and separators such as ‘’, ‘
-
’, ‘.
’ are permitted._ -
Group id: It follows packages naming rules (ex: org.apache.maven), usually with lowercase letters.
note: Only alphanumeric characters and separators such as ‘’, ‘
-
’, ‘.
’ are permitted._ -
Version: Module version. The format is ‘major.minor.build'
note: Only digits are permitted -
Production path: Working directory where module material will be built.
note: User $(Project) to plact it inside modelio’s project space.
