The BPMN Export service is used to generate BPMN files from a BPMN model built in Modelio.

To export a BPMN model :

  1. Select the BPMN model to export in the project explorer.

  2. Use the Import / Export > Export > Export BPMN contextual command.

Exporting a BPMN Model

Steps:

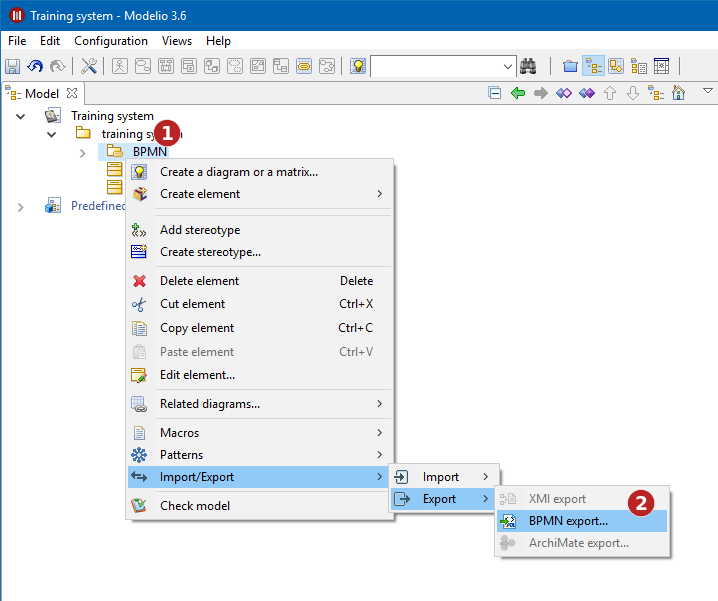

  1. Select the BPMN model.

  2. Run the Import/Export > Import > BPMN export command.

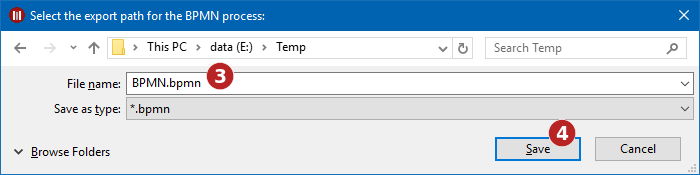

  3. Choose a name for the exported file.

  4. Click on Save to validate and launch the export process.

Note: Some BPMN models might need to be normalized before export. Make sure your model is in read/write mode before launching the command.
