Event
An event is a behavior element that denotes a state change that influences behavior.

An event may have a time attribute that indicates the moment or moments at which the event happens. For example, this can be used to model time schedules.

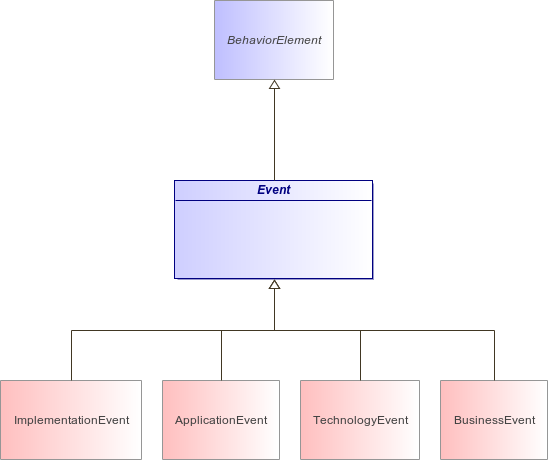

: Event (architecture_autodiagram)
Figure 11 : Event (architecture_autodiagram)
EventBehaviorElementImplementationEventApplicationEventTechnologyEventBusinessEvent
Attribute
Description
string time [1..1]
indicates the moment or moments at which the event happens. For example, this can be used to model time schedules.
