DynamicRelationship
Models behavioral dependencies between elements.

The dynamic relationships describe (temporal) dependencies between elements within the architecture. Two types of dynamic relationships are distinguished:

  • The triggering relationship represents a control flow between elements, denoted by a solid line.
  • The flow relationship represents a data (or value) flow between elements, denoted by a dashed line.
: DynamicRelationship (architecture_autodiagram)

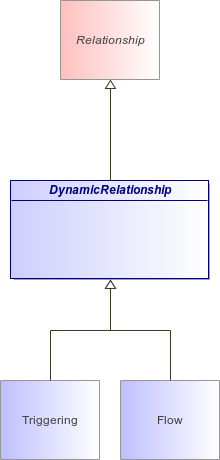

Figure 133 : DynamicRelationship (architecture_autodiagram)
DynamicRelationshipRelationshipTriggeringFlow
