other
Relationships that do not fall into one of the other categories.
: Package Structure Diagram (automatic)

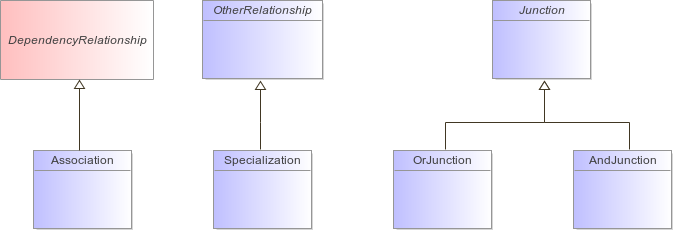

Figure 136 : Package Structure Diagram (automatic)
AssociationJunctionOtherRelationshipSpecializationOrJunctionAndJunctionDependencyRelationship
Class
Summary
AndJunction
And junction
Association
An association models a relationship between concepts that is not covered by another, more specific relationship.
Junction
A junction is used to connect relationships of the same type.
OrJunction
Or junction
OtherRelationship
Relationships that do not fall into one of the other categories.
Specialization
The specialization relationship indicates that an element is a particular kind or group of another element.
