core
A reference structure used to classify elements of the ArchiMate core language.
: Top-Level Hierarchy of ArchiMate Concepts

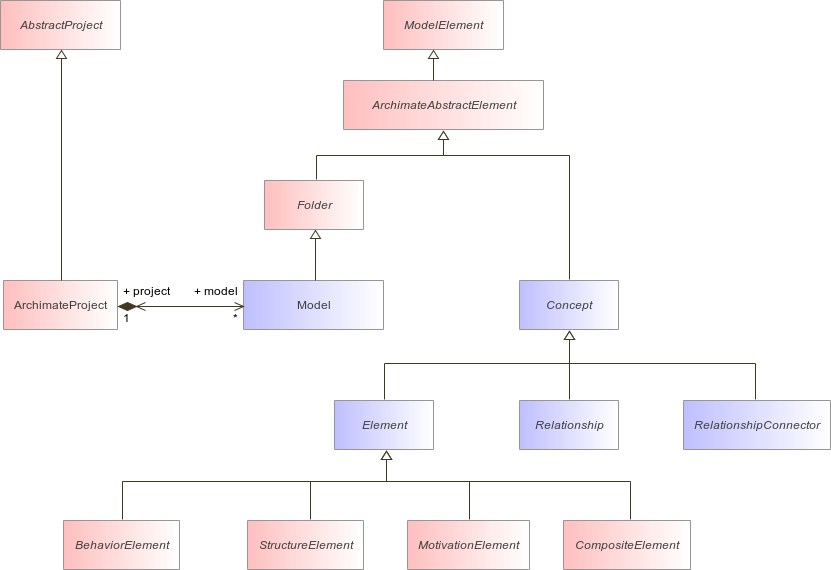

Figure 2 : Top-Level Hierarchy of ArchiMate Concepts
ModelConceptElementRelationshipStructureElementBehaviorElementCompositeElementMotivationElementRelationshipConnectorArchimateProjectFolderArchimateAbstractElement
Package
Summary
generic
This package describes the ArchiMate generic metamodel that defines the full structure of the language.
structure
Archimate model containment organization.
Class
Summary
ArchimateAbstractElement
Root metaclass for Archimate elements
ArchimateView
Partial representation of the model in a diagram.
Concept
A concept is an element, a relationship, or a relationship connector.
Element
Represents graphical nodes.
Relationship
A connection between a source and target concept. Classified as structural, dependency, dynamic, or other.
RelationshipConnector
Node that only serves to connecting relationships.
ViewPointDiagram
ViewPoint diagram.
