ArchiMate Metamodel
Partial representation of the model in a diagram.
An ArchiMate View is a partial representation of the model. It's a photo of a set of model element displayed in the same diagram and selected according to business, user profile or interests criteria.
An ArchimateView is owned by a ViewPoint, which also defines which elements the view should contain.

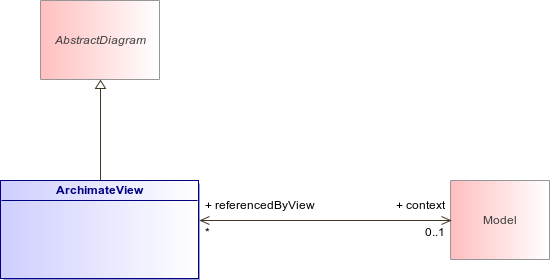

Figure 33 : Class Architecture Diagram (automatic)
Association | Description |
|---|---|
The archimate model this diagram relates. All elements created in this diagram will be put in folders on the model. |
