ExpansionRegion
: ExpansionRegion (architecture_autodiagram)

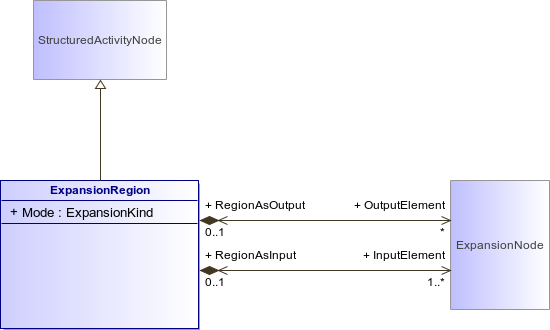

Figure 115 : ExpansionRegion (architecture_autodiagram)
ExpansionRegionStructuredActivityNodeExpansionNode
Attribute
Description
ExpansionKind Mode [1..1]
Association
Description
OutputElement : ExpansionNode [0..*]
An object node that accepts a separate element of the output collection during each of the multiple executions of the region. The values are formed into a collection that is available when the execution of the region is complete.
InputElement : ExpansionNode [1..*]
