InterruptibleActivityRegion
Activity group that supports termination of tokens flowing in the portions of an activity.
An interruptible region contains activity nodes. When a token leaves an interruptible region via edges designated by the region as interrupting edges, all tokens and behaviors in the region are terminated.

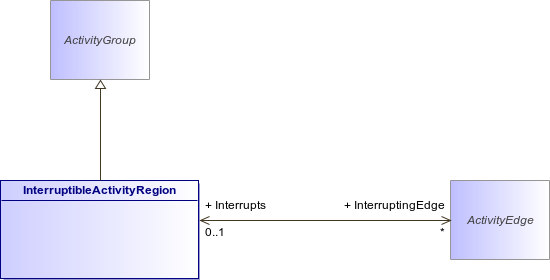

: InterruptibleActivityRegion (architecture_autodiagram)
Figure 122 : InterruptibleActivityRegion (architecture_autodiagram)
InterruptibleActivityRegionActivityGroupActivityEdge
Association
Description
InterruptingEdge : ActivityEdge [0..*]
