UML/BPMN Metamodel
Provides values to actions and accept result values from them.
A pin represents an input to an action or an output from an action.

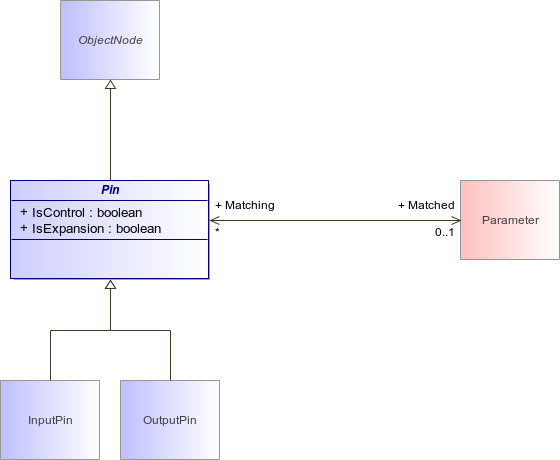

Figure 129 : Pin (architecture_autodiagram)
Attribute | Description |
|---|---|
boolean IsControl [1..1] | Indicates whether the pins provide data to the actions, or just controls when it executes it. |
boolean IsExpansion [1..1] | Indicates whether the pin is used for expansion: enables an iteration of the action on the tokens attached to the pin. |
Association | Description |
|---|---|
