ExecutionSpecification
Specifies the execution of a unit of behavior or action within the Lifeline.
An ExecutionSpecification is a specification of the execution of a unit of behavior or action within the Lifeline. The duration of an ExecutionSpecification is represented by two ExecutionOccurrenceSpecifications, the start ExecutionOccurrenceSpecification and the finish ExecutionOccurrenceSpecification.
: ExecutionSpecification (architecture_autodiagram)

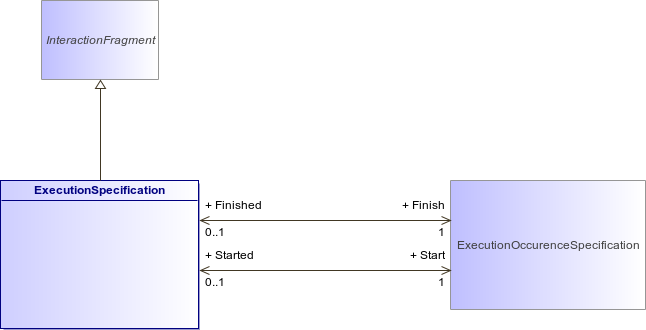

Figure 145 : ExecutionSpecification (architecture_autodiagram)
ExecutionSpecificationInteractionFragmentExecutionOccurenceSpecification
Association
Description
Finish : ExecutionOccurenceSpecification [1..1]
References the OccurrenceSpecification that designates the completion of the execution.
Start : ExecutionOccurenceSpecification [1..1]
References the OccurrenceSpecification that designates the start of the execution.
