EntryPointPseudoState
Entry point of a state machine or composite state
An entry point pseudostate is an entry point of a state machine or composite state. In each region of the state machine or composite state it has a single transition to a vertex within the same region.
: EntryPointPseudoState (architecture_autodiagram)

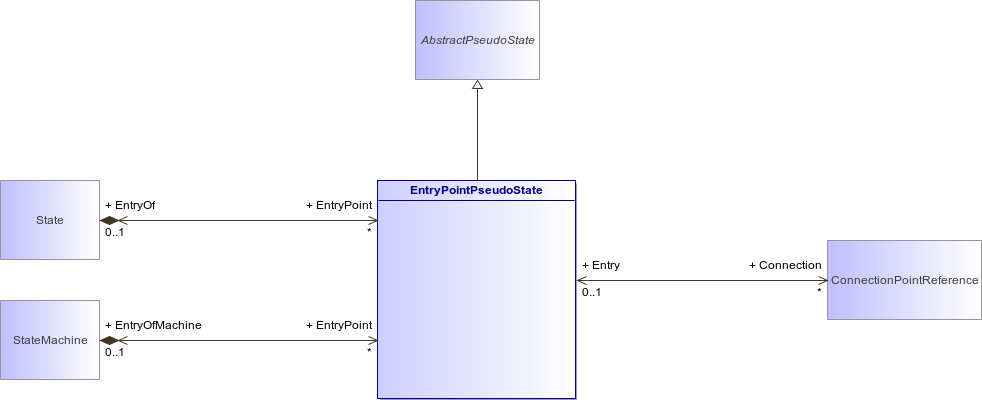

Figure 163 : EntryPointPseudoState (architecture_autodiagram)
EntryPointPseudoStateAbstractPseudoStateStateStateMachineConnectionPointReference
Association
Description
EntryOf : State [0..1]
Connection : ConnectionPointReference [0..*]
EntryOfMachine : StateMachine [0..1]
