InformationFlow
Specification of circulation of information items.

An InformationFlow specifies that one or more information items circulates from its sources to its targets. Information flows require some kind of "information channel" for transmitting information items from the source to the destination.

An information channel is represented in various ways depending on the nature of its sources and targets. It may be represented by connectors, links, associations, or even dependencies. For example, if the source and destination are parts in some composite structure such as a collaboration, then the information channel is likely to be represented by a connector between them. Or, if the source and target are objects (which are a kind of InstanceSpecification), they may be represented by a link that joins the two, and so on.

The sources and targets of the information flow can only be one of the following kind: Actor, Node, UseCase, Artifact, Class, Component, Port, Attribute, AssociationEnd, Interface, Package, ActivityNode, ActivityPartition and Instance.

: InformationFlow (architecture_autodiagram)

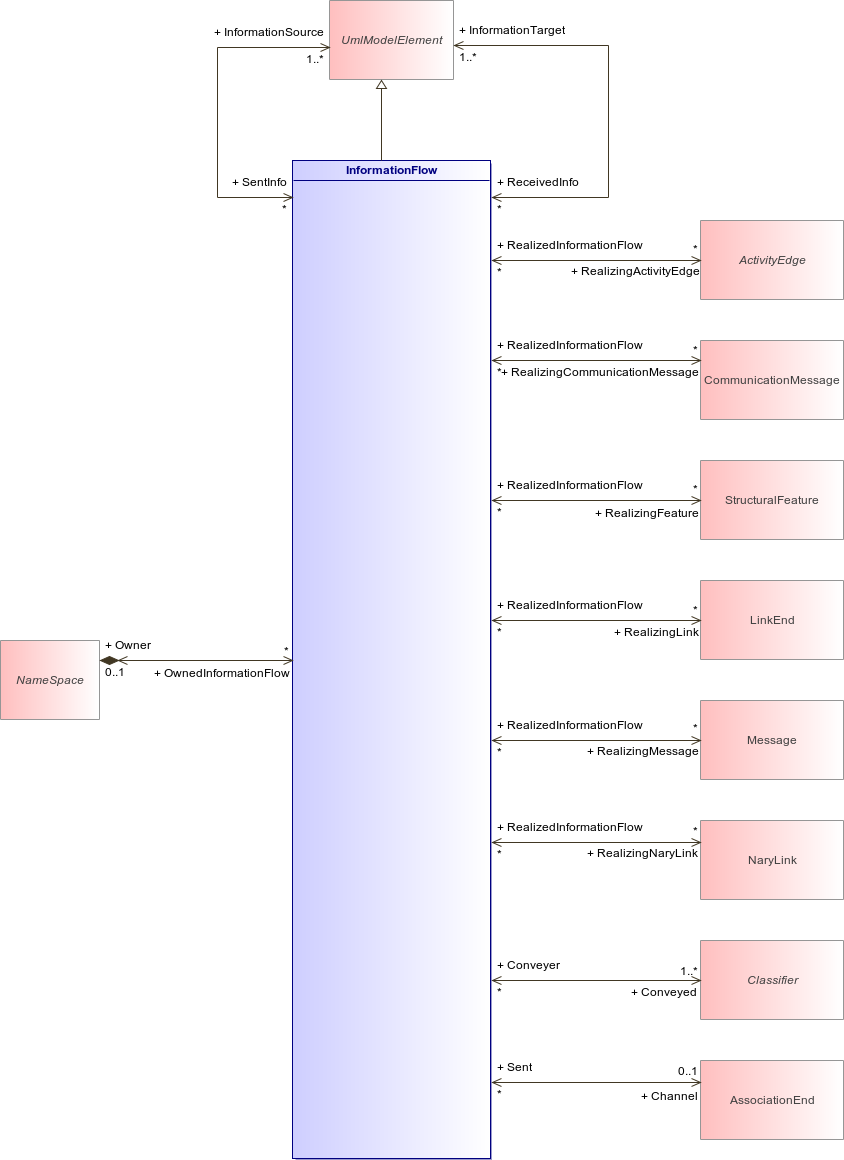

Figure 183 : InformationFlow (architecture_autodiagram)
InformationFlowUmlModelElementNameSpaceActivityEdgeCommunicationMessageStructuralFeatureLinkEndMessageNaryLinkClassifierAssociationEnd
Association
Description
Owner : NameSpace [0..1]
InformationSource : UmlModelElement [1..*]
Defines from which source the conveyed information items are initiated.
InformationTarget : UmlModelElement [1..*]
Defines to which target the conveyed information items are directed.
RealizingActivityEdge : ActivityEdge [0..*]
Determines which ActivityEdges will realize the specified flow.
RealizingCommunicationMessage : CommunicationMessage [0..*]
RealizingFeature : StructuralFeature [0..*]
RealizingLink : LinkEnd [0..*]
RealizingMessage : Message [0..*]
RealizingNaryLink : NaryLink [0..*]
Conveyed : Classifier [1..*]
Specifies the information items that may circulate on this information flow.
Channel : AssociationEnd [0..1]
