ModelTree
ModelTree is the abstraction of each element organizing ModelElements using an OwnerShip association.
The ElementOwnerShip association provides a hierarchy of ModelElements that can be managed by the model explorer or by the teamwork facility. This metaclass is not part of the UML standard. NameSpace is a typical subclass, which takes advantage of the containment facility provided by ModelTree.
: ModelTree (architecture_autodiagram)

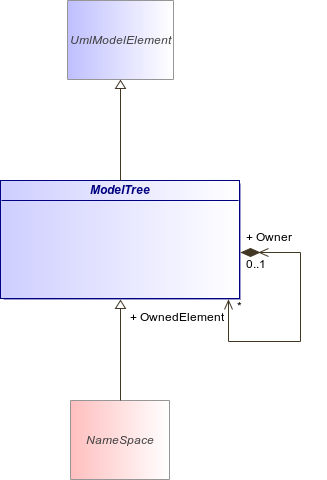

Figure 187 : ModelTree (architecture_autodiagram)
ModelTreeUmlModelElementNameSpace
Association
Description
Owner : ModelTree [0..1]
OwnedElement : ModelTree [0..*]
