ClassAssociation
Class relating other Classes. A ClassAssociation is both a Class and an Association.
A ClassAssociation is represented in UML as a Class that plays the role of an Association. In Modelio, a ClassAssociation belongs to an Association.

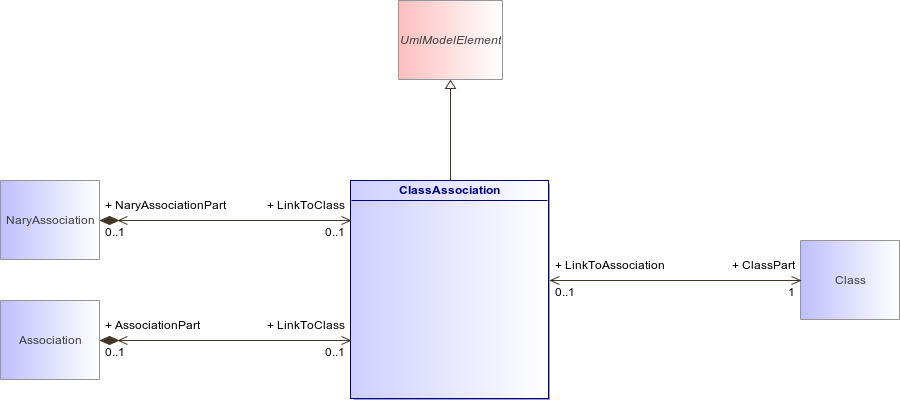

: ClassAssociation (architecture_autodiagram)
Figure 200 : ClassAssociation (architecture_autodiagram)
ClassAssociationUmlModelElementNaryAssociationAssociationClass
Association
Description
NaryAssociationPart : NaryAssociation [0..1]
ClassPart : Class [1..1]
Link to the Class that composes the ClassAssociation.
AssociationPart : Association [0..1]
