ConnectorEnd
Endpoint of a Connector.
A ConnectorEnd is an endpoint of a Connector, which attaches the Connector to a connectable element. In Modelio, a ConnectorEnd is a LinkEnd and can be bound to another element.
: ConnectorEnd (architecture_autodiagram)

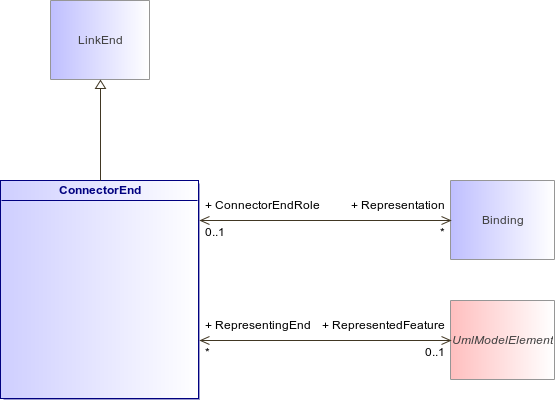

Figure 207 : ConnectorEnd (architecture_autodiagram)
ConnectorEndLinkEndBindingUmlModelElement
Association
Description
Representation : Binding [0..*]
Binding between ConnectorsEnds, used in CollaborationUse.
RepresentedFeature : UmlModelElement [0..1]
Expresses that the ConnectorEnd represents an element in a more accurate context (such as within an instance or a class internal structure).
