Package
Decomposition unit of a model.
The Package is the main structuring unit in a model. It defines a hierarchy that breaks down a Model. Packages can contain Packages, Classifiers, and so on. A Package belongs to its parent Package, represented as a NameSpace in the metamodel, except for the rootPackage, which belongs to a Project.
: Package (architecture_autodiagram)

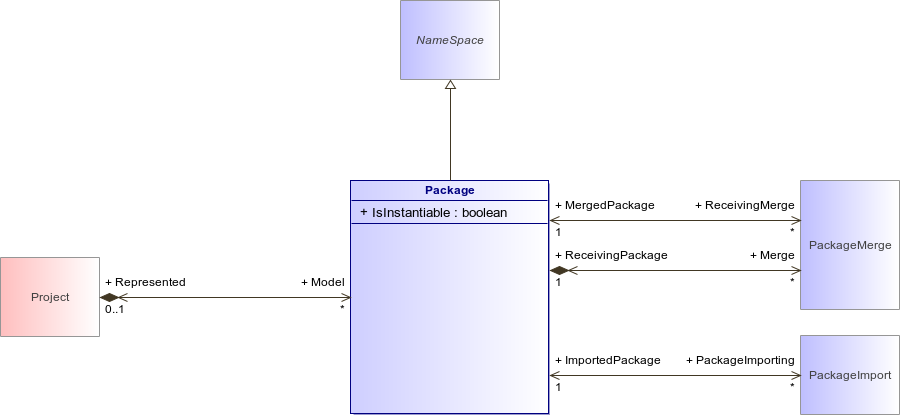

Figure 231 : Package (architecture_autodiagram)
PackageNameSpaceProjectPackageMergePackageImport
Attribute
Description
boolean IsInstantiable [1..1]
This attribute should be discarded. It remains for backward compatibility reasons. A package is not instanciable in UML 2.0.
Association
Description
ReceivingMerge : PackageMerge [0..*]
Represented : Project [0..1]
Merge : PackageMerge [0..*]
Merge relation between Packages. Corresponds to UML 2.0 merge semantics.
PackageImporting : PackageImport [0..*]
