BpmnEndPoint

The actual definition of the service address is out of scope of BPMN 2.0. The EndPoint element is an extension point and extends from RootElement. The EndPoint element MAY be extended with endpoint reference definitions introduced in other specifications (e.g., WS-Addressing).

EndPoints can be specified for Participants.

: BpmnEndPoint (architecture_autodiagram)

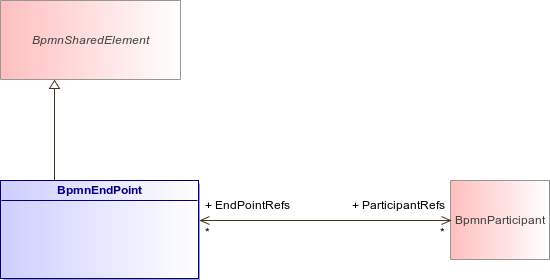

Figure 22 : BpmnEndPoint (architecture_autodiagram)
BpmnEndPointBpmnSharedElementBpmnParticipant
Association
Description
ParticipantRefs : BpmnParticipant [0..*]
