Project
Workspace inside which a Model is built.

A project in Modelio corresponds to the UML Model concept. A Project in Modelio has a root Package, and in addition a specific configuration, detailing deployed MDACs, MDAC parameter values, and so on. A Project does not belong to any other element.

: Project (architecture_autodiagram)

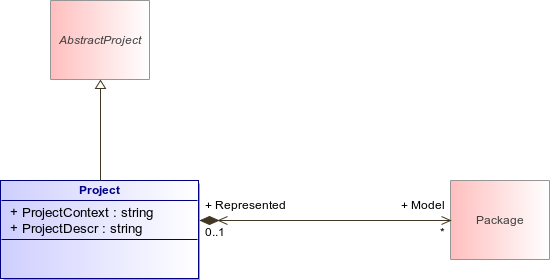

Figure 243 : Project (architecture_autodiagram)
ProjectAbstractProjectPackage
Attribute
Description
string ProjectContext [1..1]
string ProjectDescr [1..1]
Association
Description
Model : Package [0..*]
Defines the Package associated to the Project (equivalent to the UML Model notion) that is the root of the Project's Package organization.
