ModuleComponent
Module Modelio specific metaclass. Represents a Modelio module. It inherits from Component, its nearest looking like UML representation.

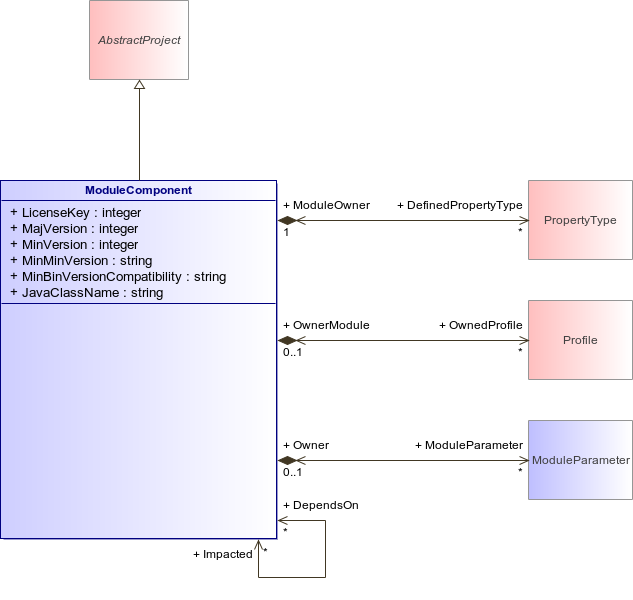

: ModuleComponent (architecture_autodiagram)
Figure 254 : ModuleComponent (architecture_autodiagram)
ModuleComponentAbstractProjectPropertyTypeProfileModuleParameter
Attribute
Description
integer LicenseKey [1..1]
integer MajVersion [1..1]
integer MinVersion [1..1]
string MinMinVersion [1..1]
string MinBinVersionCompatibility [1..1]
string JavaClassName [1..1]
Association
Description
DefinedPropertyType : PropertyType [0..*]

Deprecated : add property types in a profile.

OwnedProfile : Profile [0..*]
ModuleParameter : ModuleParameter [0..*]
DependsOn : ModuleComponent [0..*]
Impacted : ModuleComponent [0..*]
