PropertyTable

A property table has a name and a stores a key/value map.

: PropertyTable (architecture_autodiagram)

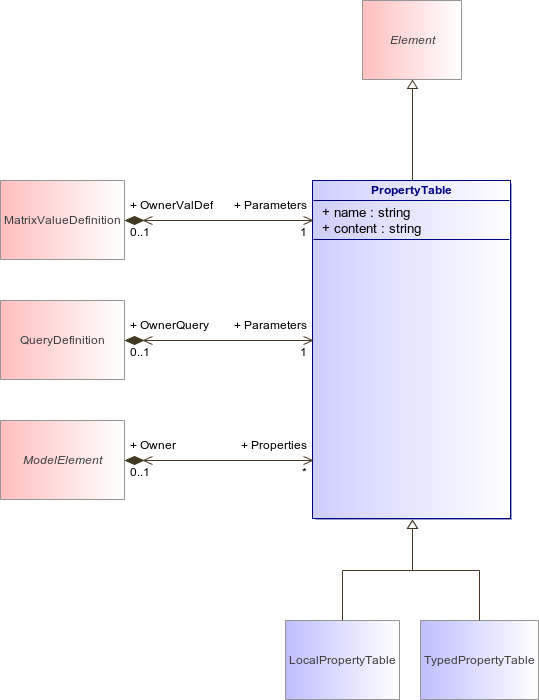

Figure 266 : PropertyTable (architecture_autodiagram)
PropertyTableElementMatrixValueDefinitionQueryDefinitionModelElementLocalPropertyTableTypedPropertyTable
Attribute
Description
string name [1..1]
string content [1..1]
Association
Description
OwnerValDef : MatrixValueDefinition [0..1]
Matrix value definition owning the property table.
OwnerQuery : QueryDefinition [0..1]
Query owner
Owner : ModelElement [0..1]
