AbstractResource
: Class Architecture Diagram (automatic)

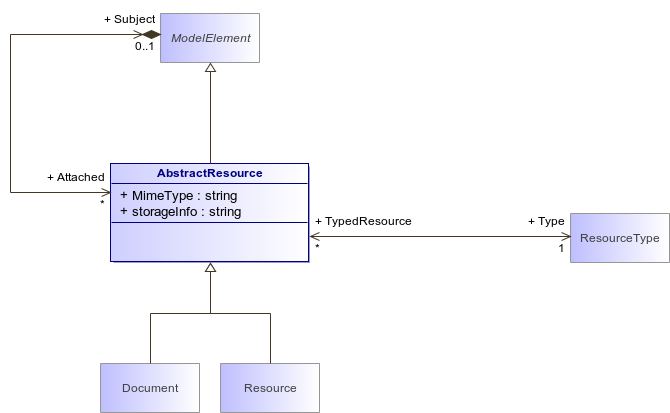

Figure 271 : Class Architecture Diagram (automatic)
AbstractResourceModelElementResourceTypeDocumentResource
Attribute
Description
string MimeType [1..1]
MIME type of the rich note.
string storageInfo [1..1]

Internal informations about where the resource is located and/or where it can be extracted.

Association
Description
Type : ResourceType [1..1]
Semantic function of the rich note.
Subject : ModelElement [0..1]
Model element owning the rich note.
