MethodologicalLink
Methodological link
A methodological link allows drawing semantic relationships between elements originating from the same or different metamodels. They allow building up methodologies such as progressive model refinements, inter models traceability, impact analysis, dependency graphes... The semantic of a methodological link is defined by its stereotype. A MethodLink without stereotype has no meaning and is not allowed by Modelio. The module bringing the stereotype defines: - the semantic of the methodological link - the allowed sources and targets of the link
: Class Architecture Diagram (automatic)

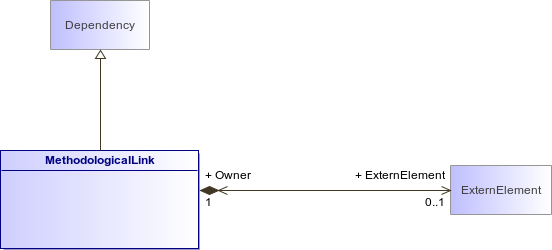

Figure 278 : Class Architecture Diagram (automatic)
MethodologicalLinkDependencyExternElement
Association
Description
ExternElement : ExternElement [0..1]
