BpmnThrowEvent

Events that throw a Result. All End Events and some Intermediate Events are throwing Events that may eventually be caught by another Event.

: BpmnThrowEvent (architecture_autodiagram)

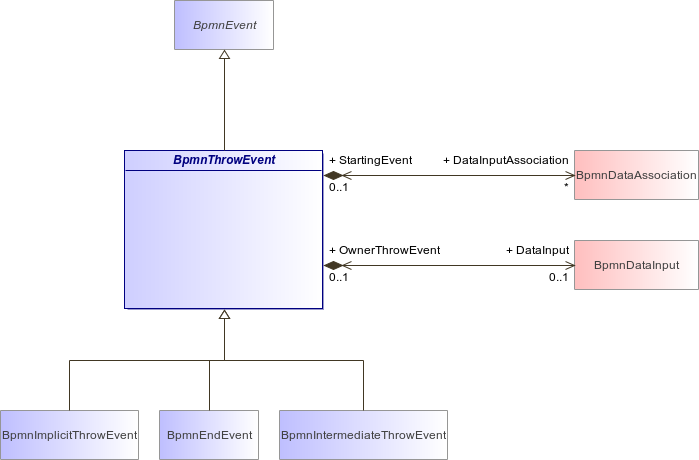

Figure 43 : BpmnThrowEvent (architecture_autodiagram)
BpmnThrowEventBpmnEventBpmnDataAssociationBpmnDataInputBpmnImplicitThrowEventBpmnEndEventBpmnIntermediateThrowEvent
Association
Description
DataInputAssociation : BpmnDataAssociation [0..*]
DataInput : BpmnDataInput [0..1]
