BpmnDataOutput
Activities and Processes often required data in order to execute. In addition they may produce data during or as a result of execution. Data that is produced is captured using Data Outputs A DataOutput belong either to a process or to an activity.
: BpmnDataOutput (architecture_autodiagram)

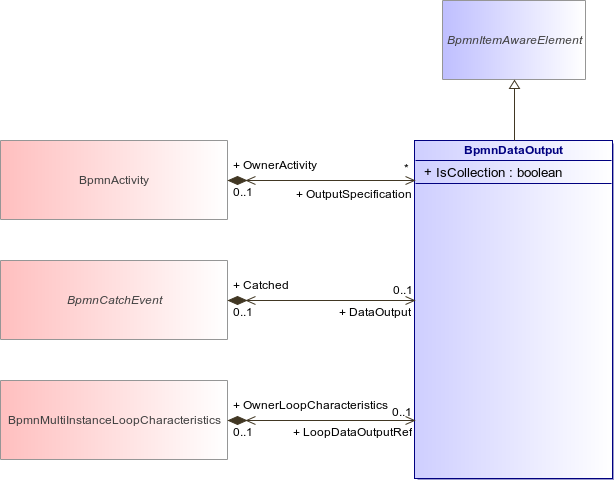

Figure 57 : BpmnDataOutput (architecture_autodiagram)
BpmnDataOutputBpmnItemAwareElementBpmnActivityBpmnCatchEventBpmnMultiInstanceLoopCharacteristics
Attribute
Description
boolean IsCollection [1..1]
Association
Description
OwnerActivity : BpmnActivity [0..1]
Catched : BpmnCatchEvent [0..1]
OwnerLoopCharacteristics : BpmnMultiInstanceLoopCharacteristics [0..1]
