UML/BPMN Metamodel
The Collaboration package contains classes which are used for modeling Collaborations, which is a collection of Participants shown as Pools, their interactions as shown by Message Flow, and may include Processes within the Pools and/or Choreographies between the Pools.
Ownership:
Collaborations/Processes are structured under UML Packages or Classifiers or operations.

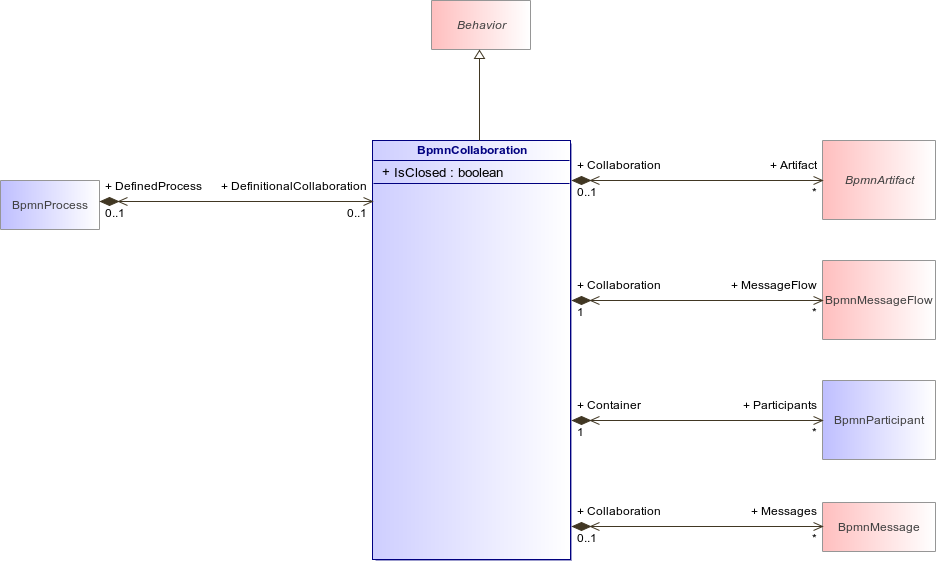

Figure 63 : BpmnCollaboration (architecture_autodiagram)
Attribute | Description |
|---|---|
boolean IsClosed [1..1] | A boolean value specifying whether Message Flow not modeled in the Collaboration can occur when the Collaboration is carried out.
? If the value is true, they MAY NOT occur.
? If the value is false, they MAY occur. |
Association | Description |
|---|---|
This provides the list of Message Flow that are used in the
Collaboration. | |
