BpmnLaneSet
The LaneSet element defines the container for one or more Lanes. A Process can contain one or more LaneSets. Each LaneSet and its Lanes can partition the Flow Elements in a different way. Ownership: A LaneSet belongs to a process, or to a Lane.

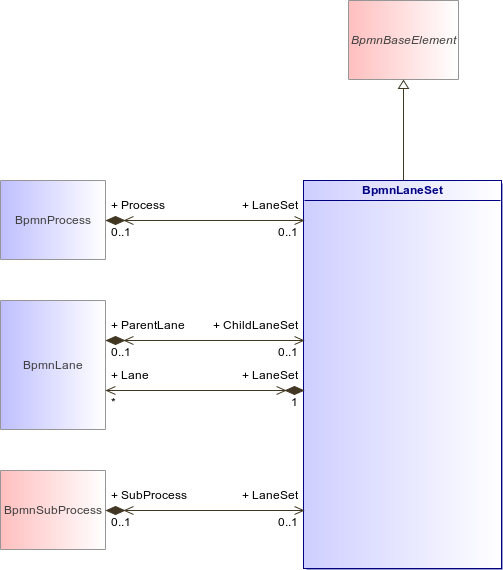

: BpmnLaneSet (architecture_autodiagram)
Figure 65 : BpmnLaneSet (architecture_autodiagram)
BpmnLaneSetBpmnBaseElementBpmnProcessBpmnLaneBpmnSubProcess
Association
Description
Lane : BpmnLane [0..*]
Process : BpmnProcess [0..1]
ParentLane : BpmnLane [0..1]
SubProcess : BpmnSubProcess [0..1]
