BpmnResourceRole
Resource allocated to a model element. The occurence provides values to resource parameters through resources binding

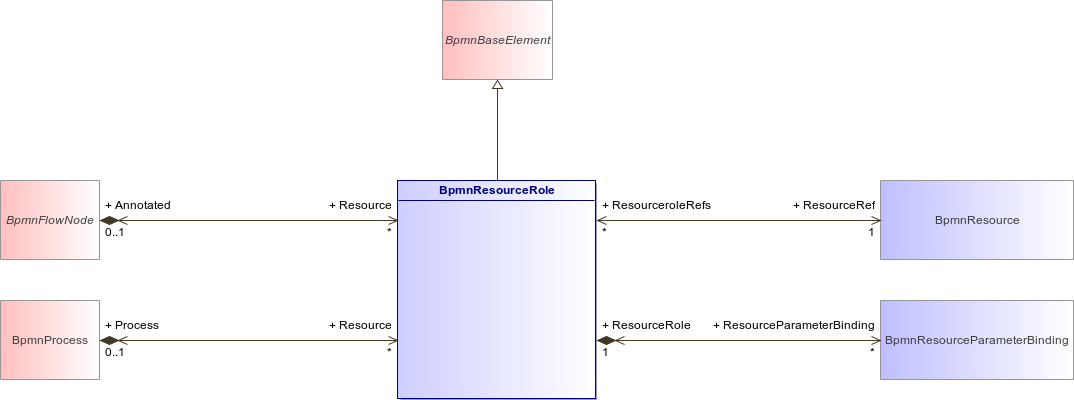

Figure 71 : BpmnResourceRole (archite²cture_autodiagram)
Association
Description
ResourceRef
:
BpmnResource
[
1
..
1
]
Annotated
:
BpmnFlowNode
[
0
..
1
]
ResourceParameterBinding
:
BpmnResourceParameterBinding
[
0
..
*
]
Process
:
BpmnProcess
[
0
..
1
]
