Introduction

The Modelio XMI import operation is used to import a UML2 model into Modelio from an XMI file.

The "XMI Import" command can only be run on packages. Imported elements will be located in the selected package.

3

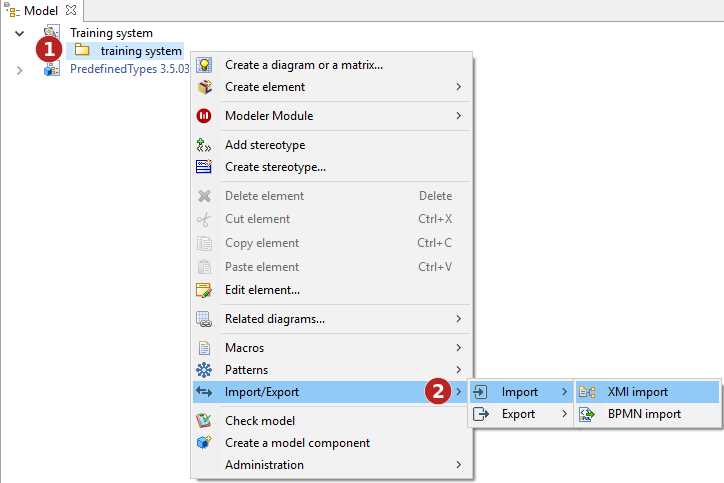

The XMI Import command

Keys:

  1. Right-click on a package to open the context menu.

  2. Run the "Import/Export \ Import \ XMI Import" command.

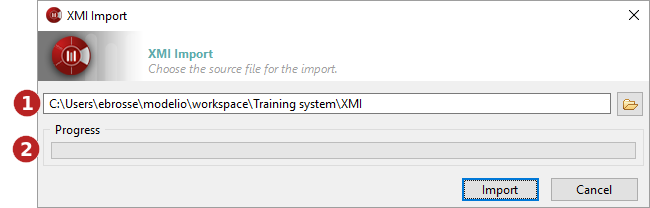

The "XMI Import" window
4
The XMI import window

Keys:

  1. This field is where you select the path of the XMI file that you are about to import.

  2. This progress bar shows the progress of the import operation.
