Creating an SQL logical model

Introduction

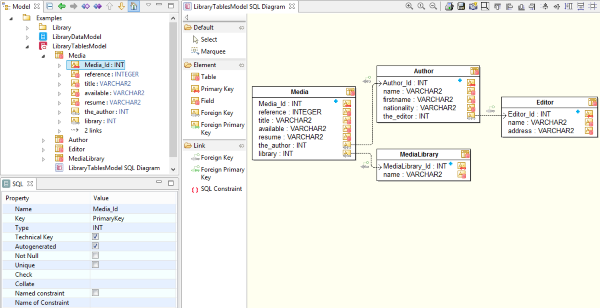

The logical model (or table model) is a relational model of SQL tables.

Since the SQL Designer module supports three variations of SQL grammar (ORACLE11G, MYSQL and SQLServer 2008), there are therefore three types of logical model, one per type of grammar supported.

Creating an SQL logical model

The SQL Designer module provides a set of commands used to create a model of SQL tables in preparation for the generation of SQL script files.

Command	Available on	Result
DataBase ORACLE11G DataBase MYSQL DataBase SQLServer	UML package	Creates the root of the SQL table model.
Table	DataBase	Creates a table.
Field primary key	Table	Creates a primary key for a table.
Field	Table	Creates an attribute for a table.
Field foreign key	Table	Creates a foreign key by specifying a primary key of another table.
Field foreign primary key	Table	Creates an attribute which is the primary key of a table and the foreign key of another.
Foreign key	Table	Creates a foreign key directed to another table.
Foreign key primary key	Table	Creates a foreign key directed to another table. However, this attribute is also the primary key of the table.
