Parametric diagrams are used to express constraints (equations) existing between value properties. They are a restricted form of internal block diagram and represent constrained use in a particular context.

The most important elements are Constraint Properties and FlowPorts composing the ConstraintBlock, as well as their relationships modeled using Connectors or Item Flow links.

Palette

imageConnector property: Creates a ConnectorProperty.

imageContraint property: Creates a ConstraintProperty.

imageParticipant property: Creates a ParticipantProperty.

imagePart: Creates an Instance or a Part inside a Classifier.

imageDistributed property: Creates a DistributedProperty.

imageFlow property: Creates a FlowProperty.

imageAttribute: Creates an Attribute.

imageAttributeLink: Creates an AttributeLink.

imageDelegate: Creates a delegate connector.

imageLink: Creates a Link.

imageFlowPort: Creates a FlowPort.

imagePort: Creates a Port.

imageProvidedInterface: Creates a ProvidedInterface.

imageRequiredInterface: Creates a RequiredInterface.

imageItem Flow: Creates an Item Flow.

imageInformation Flow: Creates an Information flow

imageRealized Information Flow: Creates a realized information flow

imageInformation Item: Creates an Information Item

imageAllocation: Creates an Allocate dependency.

imageConform: Creates a Conform dependency.

imageCopy: Creates a Copy dependency.

imageRefine: Creates a Refine dependency.

imageSatisfy: Creates a Satisfy dependency.

imageVerify: Creates a Verify dependency.

imageDependency: Creates a Dependency .

imageTraceability: Creates a Traceability link.

imageRelated diagram link: Create a link between an element and its related diagram.

imageProblem: Creates a Problem note.

imageRationale: Creates a Rationale note.

imageNote: Creates a Note.

imageConstraint: Creates a Constraint.

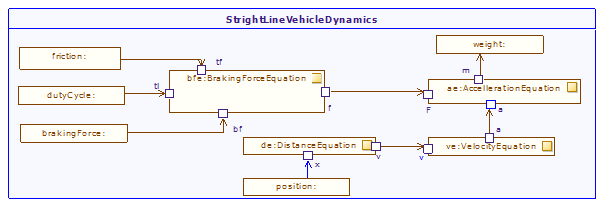

Example

The following example is extracted from the literature and implemented in the SysML ARchitect module.

Parametric diagram use case
