Usage

Sets the current element as the root of one of the models supported by Modelio (UML, requirements, and so on). Kind of a "goto" in the model.

Details

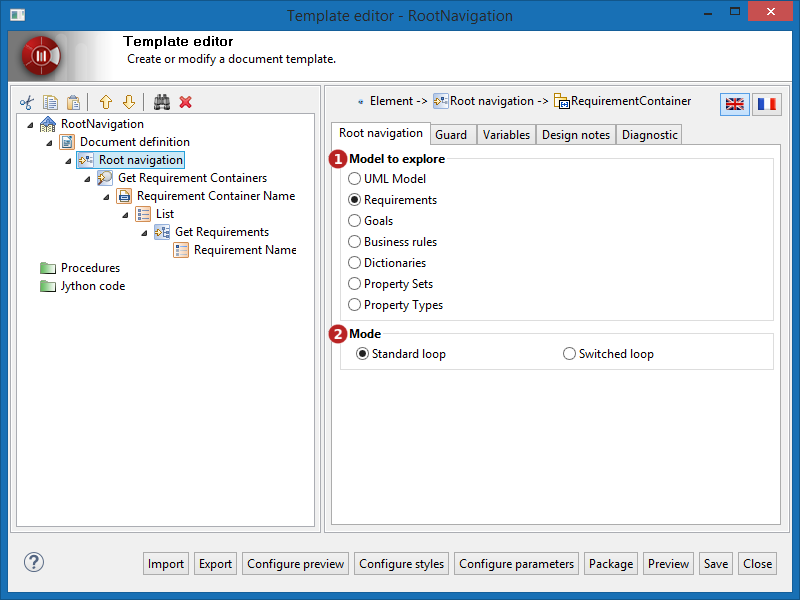

Keys:

  1. The Model to explore radio buttons are used to choose which model root will be defined as current element.

  2. The Mode radio buttons are used to choose the loop mode. See the Navigation nodes part of the What is a template page for more details:

    • Standard loop : The loop is run on the model elements obtained by the navigation node, and each child node is executed for each iteration. This navigation behavior is the standard one for a navigation node.

    • Switched loop : The loop is run on the on child nodes, and executed on each element obtained by the navigation node.
