ExceptionHandler

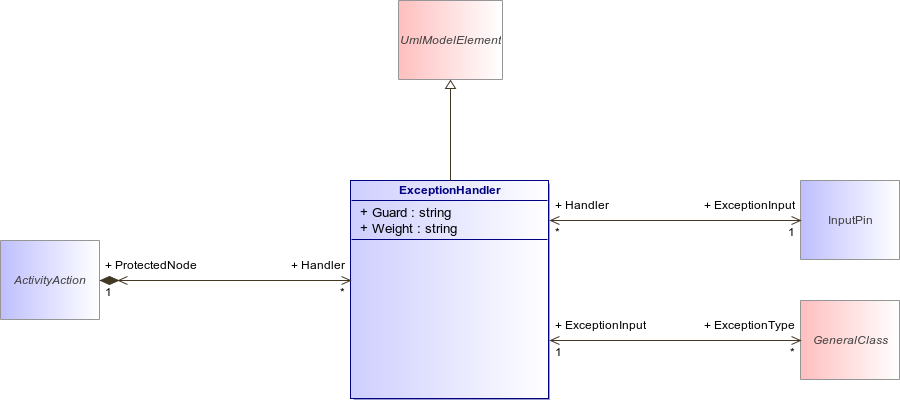

Figure 113 : ExceptionHandler (architecture_autodiagram)
Attribute
Description
string
Guard
[
1
..
1
]
string
Weight
[
1
..
1
]
Association
Description
ProtectedNode
:
ActivityAction
[
1
..
1
]
ExceptionInput
:
InputPin
[
1
..
1
]
ExceptionType
:
GeneralClass
[
0
..
*
]
