QueryDefinition
Line or column query definition. Uses an external processor to execute the query.

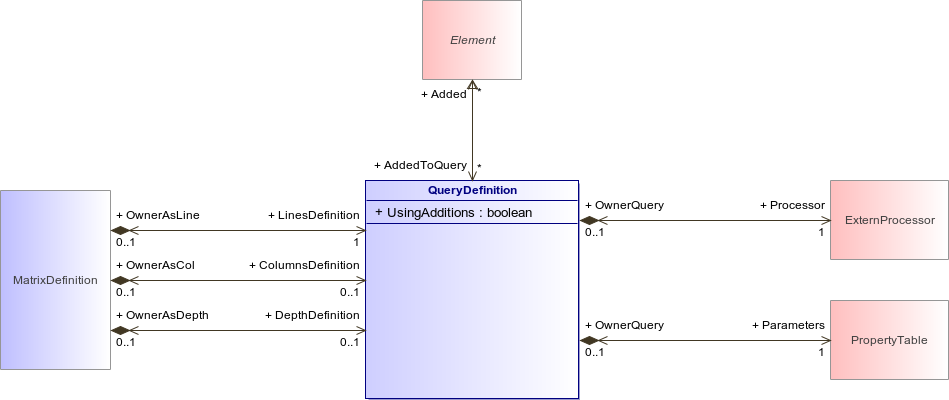

: Class Architecture Diagram (automatic)
Figure 260 : Class Architecture Diagram (automatic)
QueryDefinitionElementMatrixDefinitionExternProcessorPropertyTable
Attribute
Description
boolean UsingAdditions [1..1]
Association
Description
Added : Element [0..*]
Elements manually added to the lines or columns.
Processor : ExternProcessor [1..1]
External processor used to execute the query.
Parameters : PropertyTable [1..1]
Parameters to pass to the external processor.
OwnerAsLine : MatrixDefinition [0..1]
OwnerAsCol : MatrixDefinition [0..1]
OwnerAsDepth : MatrixDefinition [0..1]
