BpmnSequenceFlowDataAssociation

Data Objects may be directly associated with a Sequence Flow connector to represent two data associations. This is a visual short cut that normalizes two Data Associations: one from a item-aware element (e.g., an Activity) contained by the source of the Sequence Flow, connecting to the Data Object; and the other from the Data Object connecting to a item-aware element contained by the target of the Sequence Flow.

This is an extension of Modelio to the BPMN standard metamodel.

Note: See ownership, this could be a process/Subprocess

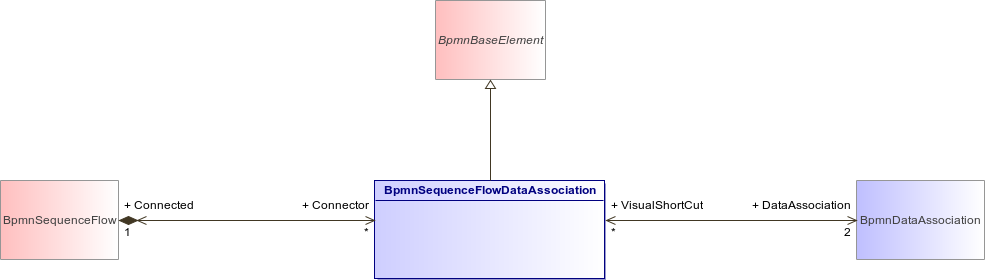

: BpmnSequenceFlowDataAssociation (architecture_autodiagram)
Figure 62 : BpmnSequenceFlowDataAssociation (architecture_autodiagram)
BpmnSequenceFlowDataAssociationBpmnBaseElementBpmnSequenceFlowBpmnDataAssociation
Association
Description
Connected : BpmnSequenceFlow [1..1]
DataAssociation : BpmnDataAssociation [2..2]
