Usage
Inserts the current diagram into the generated document.
In some formats, diagrams are automatically clickable if the corresponding elements exist in the generated documentation.
Details

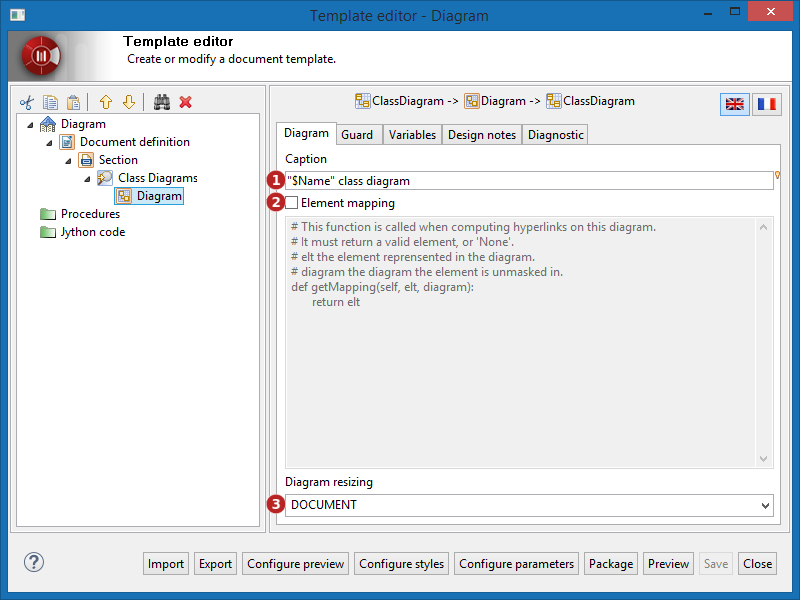

Keys:
-
The caption field defines the text that will be inserted below the diagram figure in the generated document. See Advanced syntax .
-
The Element mapping tick-box allows to define your own element mapping in the getMapping() Jython function below.
-
The Diagram resizing menu is used to choose the way the diagram will be resized in the document.
