A workflow archive is used to deploy workflows onto a Modelio Server. It can contain several workflows.

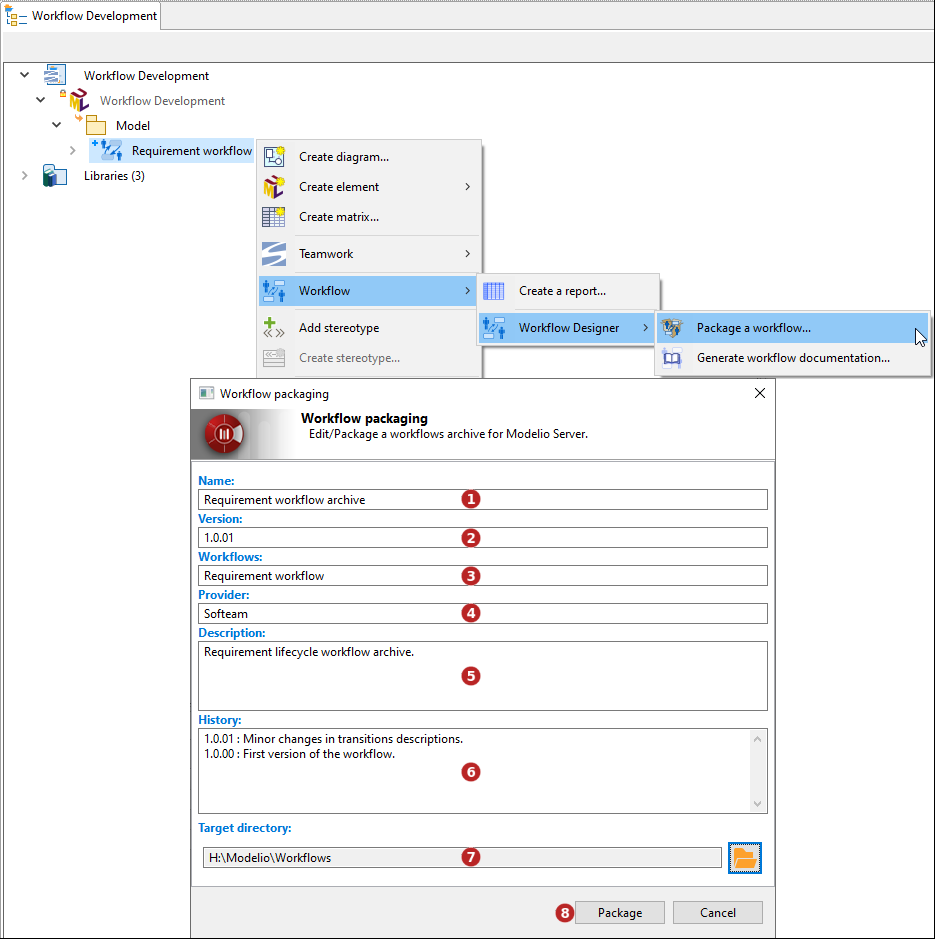

To create a Workflow Archive, select a Workflow (or a workflow Archive) and run the workflowicon.png Workflow > Workflow Designer > Package a workflow…​ command.


  1. Enter the archive name. Allowed characters: 'a' à 'z', 'A' à 'Z', '0' à '9', '.', '_' and ' '.

  2. Enter the archive version in V.R.C. format

  3. Enter the archive provider’s name

  4. Select the workflow(s) to embed to the archive

  5. Enter a description of the workflow archive

  6. Enter the archive version history

  7. Select a target directory.

  8. Click on 'Package'.
