INCOSE Challenge Solution
Interaction
Name | Value |
|---|---|
Name | PERCC Air/Rotorcraft Manufacturer Scenario |
isReentrant | false |

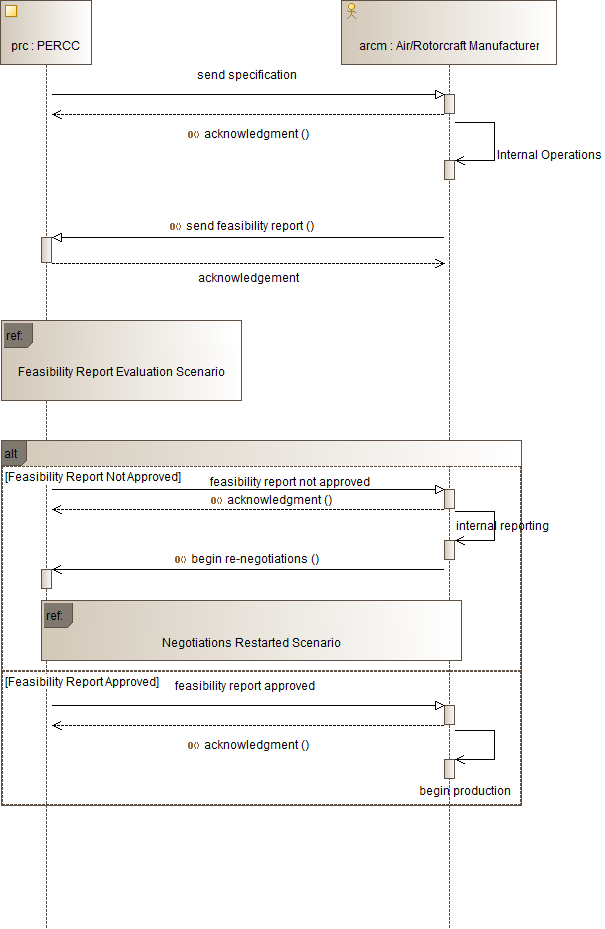

PERCC Air/Rotorcraft Manufacturer Scenario Sequence Diagram
The scenario between the PERCC and the Air/Rotorcraft manufacturer
Figure 27 PERCC Air/Rotorcraft Manufacturer Scenario Sequence Diagram
