org.eclipse.swt.dnd

Class DragSourceEvent

java.lang.Object

java.util.EventObject

org.eclipse.swt.internal.SWTEventObject

org.eclipse.swt.events.TypedEvent

org.eclipse.swt.dnd.DragSourceEvent

All Implemented Interfaces:

java.io.Serializable

public class DragSourceEvent
extends TypedEvent

The DragSourceEvent contains the event information passed in the methods of the DragSourceListener.

See Also:

DragSourceListener, Sample code and further information, Serialized Form

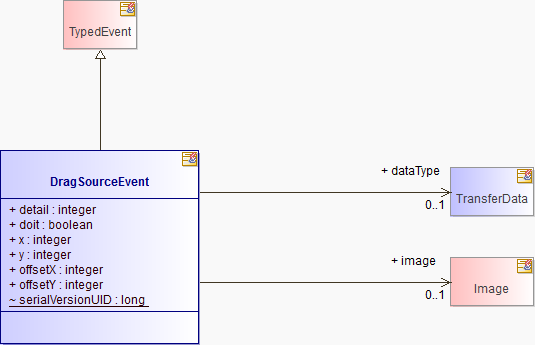

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
TransferData	dataType The type of data requested.
int	detail The operation that was performed.
boolean	doit In dragStart, the doit field determines if the drag and drop operation should proceed; in dragFinished, the doit field indicates whether the operation was performed successfully.
Image	image The drag source image to be displayed during the drag.
int	offsetX In dragStart, the x offset (relative to the image) where the drag source image will be displayed.
int	offsetY In dragStart, the y offset (relative to the image) where the drag source image will be displayed.
(package private) static long	serialVersionUID
int	x In dragStart, the x coordinate (relative to the control) of the position the mouse went down to start the drag.
int	y In dragStart, the y coordinate (relative to the control) of the position the mouse went down to start the drag.

Fields inherited from class org.eclipse.swt.events.TypedEvent

data, display, time, widget

Fields inherited from class java.util.EventObject

source

Constructor Summary

Constructors

Constructor and Description
DragSourceEvent(DNDEvent e) Constructs a new instance of this class based on the information in the given untyped event.

Method Summary

Methods

Modifier and Type	Method and Description
java.lang.String	toString() Returns a string containing a concise, human-readable description of the receiver.
(package private) void	updateEvent(DNDEvent e)

Methods inherited from class java.util.EventObject

getSource

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

detail

public int detail

The operation that was performed.

See Also:

DND.DROP_NONE, DND.DROP_MOVE, DND.DROP_COPY, DND.DROP_LINK, DND.DROP_TARGET_MOVE

doit

public boolean doit

In dragStart, the doit field determines if the drag and drop operation should proceed; in dragFinished, the doit field indicates whether the operation was performed successfully.

In dragStart:

Flag to determine if the drag and drop operation should proceed. The application can set this value to false to prevent the drag from starting. Set to true by default.

In dragSetData:

This will be set to true when the call to dragSetData is made. Set it to false to cancel the drag.

In dragFinished:

Flag to indicate if the operation was performed successfully. True if the operation was performed successfully.

x

public int x

In dragStart, the x coordinate (relative to the control) of the position the mouse went down to start the drag.

Since:

3.2

y

public int y

In dragStart, the y coordinate (relative to the control) of the position the mouse went down to start the drag.

Since:

3.2

dataType

public TransferData dataType

The type of data requested. Data provided in the data field must be of the same type.


public Image image

The drag source image to be displayed during the drag.

A value of null indicates that no drag image will be displayed.

The default value is null.

Since:

3.3

offsetX

public int offsetX

In dragStart, the x offset (relative to the image) where the drag source image will be displayed.

Since:

3.5

offsetY

public int offsetY

In dragStart, the y offset (relative to the image) where the drag source image will be displayed.

Since:

3.5

serialVersionUID

static final long serialVersionUID

See Also:

Constant Field Values

Constructor Detail

DragSourceEvent

public DragSourceEvent(DNDEvent e)

Constructs a new instance of this class based on the information in the given untyped event.

Parameters:

e - the untyped event containing the information

Method Detail

updateEvent

void updateEvent(DNDEvent e)

toString

public java.lang.String toString()

Returns a string containing a concise, human-readable description of the receiver.

Overrides:

toString in class TypedEvent

Returns:

a string representation of the event
