org.eclipse.swt.dnd

Class TreeDropTargetEffect

java.lang.Object

org.eclipse.swt.dnd.DropTargetAdapter

org.eclipse.swt.dnd.DropTargetEffect

org.eclipse.swt.dnd.TreeDropTargetEffect

All Implemented Interfaces:

java.util.EventListener, DropTargetListener, SWTEventListener

public class TreeDropTargetEffect
extends DropTargetEffect

This class provides a default drag under effect (eg. select, insert, scroll and expand) when a drag occurs over a Tree.

Classes that wish to provide their own drag under effect for a Tree can extend the TreeDropTargetEffect class and override any applicable methods in TreeDropTargetEffect to display their own drag under effect.

Subclasses that override any methods of this class must call the corresponding super method to get the default drag under effect implementation.

The feedback value is either one of the FEEDBACK constants defined in class DND which is applicable to instances of this class, or it must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those DND effect constants.

Feedback:

FEEDBACK_SELECT, FEEDBACK_INSERT_BEFORE, FEEDBACK_INSERT_AFTER, FEEDBACK_EXPAND, FEEDBACK_SCROLL

Note: Only one of the styles FEEDBACK_SELECT, FEEDBACK_INSERT_BEFORE or FEEDBACK_INSERT_AFTER may be specified.

Since:

3.3

See Also:

DropTargetAdapter, DropTargetEvent, Sample code and further information

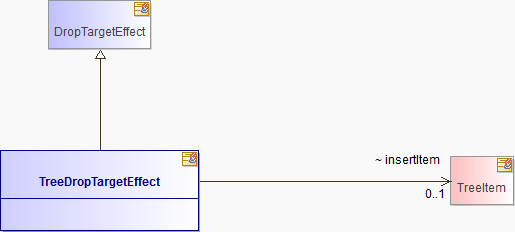

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) int	dropIndex
(package private) static int	EXPAND_HYSTERESIS
(package private) long	expandBeginTime
(package private) int	expandIndex
(package private) boolean	insertBefore
(package private) TreeItem	insertItem
(package private) static int	SCROLL_HYSTERESIS
(package private) long	scrollBeginTime
(package private) int	scrollIndex

Fields inherited from class org.eclipse.swt.dnd.DropTargetEffect

control

Constructor Summary

Constructors

Constructor and Description
TreeDropTargetEffect(Tree tree) Creates a new TreeDropTargetEffect to handle the drag under effect on the specified Tree.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) int	checkEffect(int effect)
void	dragEnter(DropTargetEvent event) This implementation of dragEnter provides a default drag under effect for the feedback specified in event.feedback.
void	dragLeave(DropTargetEvent event) This implementation of dragLeave provides a default drag under effect for the feedback specified in event.feedback.
void	dragOver(DropTargetEvent event) This implementation of dragOver provides a default drag under effect for the feedback specified in event.feedback.

Methods inherited from class org.eclipse.swt.dnd.DropTargetEffect

getControl, getItem, getItem, getItem, nextItem, previousItem

Methods inherited from class org.eclipse.swt.dnd.DropTargetAdapter

dragOperationChanged, drop, dropAccept

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

SCROLL_HYSTERESIS

static final int SCROLL_HYSTERESIS

See Also:

Constant Field Values

EXPAND_HYSTERESIS

static final int EXPAND_HYSTERESIS

See Also:

Constant Field Values

dropIndex

int dropIndex

scrollIndex

int scrollIndex

scrollBeginTime

long scrollBeginTime

expandIndex

int expandIndex

expandBeginTime

long expandBeginTime

insertItem

TreeItem insertItem

insertBefore

boolean insertBefore

Constructor Detail

TreeDropTargetEffect

public TreeDropTargetEffect(Tree tree)

Creates a new TreeDropTargetEffect to handle the drag under effect on the specified Tree.

Parameters:

tree - the Tree over which the user positions the cursor to drop the data

Method Detail

checkEffect

int checkEffect(int effect)

dragEnter

public void dragEnter(DropTargetEvent event)

This implementation of dragEnter provides a default drag under effect for the feedback specified in event.feedback. For additional information see DropTargetAdapter.dragEnter. Subclasses that override this method should call super.dragEnter(event) to get the default drag under effect implementation.

Specified by:

dragEnter in interface DropTargetListener

Overrides:

dragEnter in class DropTargetAdapter

Parameters:

event - the information associated with the drag enter event

See Also:

DropTargetAdapter, DropTargetEvent

dragLeave

public void dragLeave(DropTargetEvent event)

This implementation of dragLeave provides a default drag under effect for the feedback specified in event.feedback. For additional information see DropTargetAdapter.dragLeave. Subclasses that override this method should call super.dragLeave(event) to get the default drag under effect implementation.

Specified by:

dragLeave in interface DropTargetListener

Overrides:

dragLeave in class DropTargetAdapter

Parameters:

event - the information associated with the drag leave event

See Also:

DropTargetAdapter, DropTargetEvent

dragOver

public void dragOver(DropTargetEvent event)

This implementation of dragOver provides a default drag under effect for the feedback specified in event.feedback. For additional information see DropTargetAdapter.dragOver. Subclasses that override this method should call super.dragOver(event) to get the default drag under effect implementation.

Specified by:

dragOver in interface DropTargetListener

Overrides:

dragOver in class DropTargetAdapter

Parameters:

event - the information associated with the drag over event

See Also:

DropTargetAdapter, DropTargetEvent, DND.FEEDBACK_SELECT, DND.FEEDBACK_INSERT_BEFORE, DND.FEEDBACK_INSERT_AFTER, DND.FEEDBACK_SCROLL
