org.eclipse.swt.events

Class GestureEvent

java.lang.Object

java.util.EventObject

org.eclipse.swt.internal.SWTEventObject

org.eclipse.swt.events.TypedEvent

org.eclipse.swt.events.GestureEvent

All Implemented Interfaces:

java.io.Serializable

public class GestureEvent
extends TypedEvent

Instances of this class are sent in response to touch-based gestures that are triggered by the user.

Since:

3.7

See Also:

GestureListener, Sample code and further information, Serialized Form

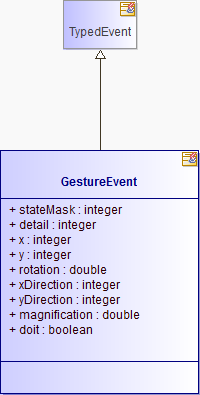

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
int	detail The gesture type.
boolean	doit This flag indicates whether the operation should be allowed.
double	magnification This field is valid when the detail field is set to GESTURE_MAGNIFY.
double	rotation This field is valid when the detail field is set to GESTURE_ROTATE.
(package private) static long	serialVersionUID
int	stateMask The state of the keyboard modifier keys and mouse masks at the time the event was generated.
int	x The meaning of this field is dependent on the value of the detail field and the platform.
int	xDirection This field is valid when the detail field is set to GESTURE_SWIPE or GESTURE_PAN.
int	y The meaning of this field is dependent on the value of the detail field and the platform.
int	yDirection This field is valid when the detail field is set to GESTURE_SWIPE or GESTURE_PAN.

Fields inherited from class org.eclipse.swt.events.TypedEvent

data, display, time, widget

Fields inherited from class java.util.EventObject

source

Constructor Summary

Constructors

Constructor and Description
GestureEvent(Event e) Constructs a new instance of this class based on the information in the given untyped event.

Method Summary

Methods

Modifier and Type	Method and Description
java.lang.String	toString() Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class org.eclipse.swt.events.TypedEvent

getName

Methods inherited from class java.util.EventObject

getSource

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

stateMask

public int stateMask

The state of the keyboard modifier keys and mouse masks at the time the event was generated.

See Also:

SWT.MODIFIER_MASK, SWT.BUTTON_MASK

detail

public int detail

The gesture type.

• SWT.GESTURE_BEGIN
• SWT.GESTURE_END
• SWT.GESTURE_MAGNIFY
• SWT.GESTURE_PAN
• SWT.GESTURE_ROTATE
• SWT.GESTURE_SWIPE

This field determines the GestureEvent fields that contain valid data.

x

public int x

The meaning of this field is dependent on the value of the detail field and the platform. It can represent either the x coordinate of the centroid of the touches that make up the gesture, or the x coordinate of the cursor at the time the gesture was performed.

y

public int y

The meaning of this field is dependent on the value of the detail field and the platform. It can represent either the y coordinate of the centroid of the touches that make up the gesture, or the y coordinate of the cursor at the time the gesture was performed.

rotation

public double rotation

This field is valid when the detail field is set to GESTURE_ROTATE. It specifies the number of degrees rotated on the device since the gesture started. Positive values indicate counter-clockwise rotation, and negative values indicate clockwise rotation.

xDirection

public int xDirection

This field is valid when the detail field is set to GESTURE_SWIPE or GESTURE_PAN. Both xDirection and yDirection can be valid for an individual gesture. The meaning of this field is dependent on the value of the detail field.

If detail is GESTURE_SWIPE then a positive value indicates a swipe to the right and a negative value indicates a swipe to the left. If detail is GESTURE_PAN then a positive value indicates a pan to the right by this field's count of pixels and a negative value indicates a pan to the left by this field's count of pixels.

yDirection

public int yDirection

This field is valid when the detail field is set to GESTURE_SWIPE or GESTURE_PAN. Both xDirection and yDirection can be valid for an individual gesture. The meaning of this field is dependent on the value of the detail field. If detail is GESTURE_SWIPE then a positive value indicates a downward swipe and a negative value indicates an upward swipe. If detail is GESTURE_PAN then a positive value indicates a downward pan by this field's count of pixels and a negative value indicates an upward pan by this field's count of pixels.

magnification

public double magnification

This field is valid when the detail field is set to GESTURE_MAGNIFY. This is the scale factor to be applied. This value will be 1.0 in the first received event with GESTURE_MAGNIFY, and will then fluctuate in subsequent events as the user moves their fingers.

doit

public boolean doit

This flag indicates whether the operation should be allowed. Setting it to false will cancel the operation.

serialVersionUID

static final long serialVersionUID

See Also:

Constant Field Values

Constructor Detail

GestureEvent

public GestureEvent(Event e)

Constructs a new instance of this class based on the information in the given untyped event.

Parameters:

e - the untyped event containing the information

Method Detail

toString

public java.lang.String toString()

Returns a string containing a concise, human-readable description of the receiver.

Overrides:

toString in class TypedEvent

Returns:

a string representation of the event
