org.eclipse.swt.events

Class KeyEvent

java.lang.Object

java.util.EventObject

org.eclipse.swt.internal.SWTEventObject

org.eclipse.swt.events.TypedEvent

org.eclipse.swt.events.KeyEvent

All Implemented Interfaces:

java.io.Serializable

Direct Known Subclasses:

TraverseEvent, VerifyEvent

public class KeyEvent
extends TypedEvent

Instances of this class are sent as a result of keys being pressed and released on the keyboard.

When a key listener is added to a control, the control will take part in widget traversal. By default, all traversal keys (such as the tab key and so on) are delivered to the control. In order for a control to take part in traversal, it should listen for traversal events. Otherwise, the user can traverse into a control but not out. Note that native controls such as table and tree implement key traversal in the operating system. It is not necessary to add traversal listeners for these controls, unless you want to override the default traversal.

See Also:

KeyListener, TraverseListener, Sample code and further information, Serialized Form

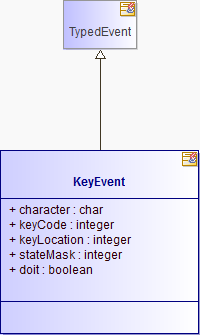

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
char	character the character represented by the key that was typed.
boolean	doit A flag indicating whether the operation should be allowed.
int	keyCode the key code of the key that was typed, as defined by the key code constants in class SWT.
int	keyLocation depending on the event, the location of key specified by the keyCode or character.
(package private) static long	serialVersionUID
int	stateMask the state of the keyboard modifier keys and mouse masks at the time the event was generated.

Fields inherited from class org.eclipse.swt.events.TypedEvent

data, display, time, widget

Fields inherited from class java.util.EventObject

source

Constructor Summary

Constructors

Constructor and Description
KeyEvent(Event e) Constructs a new instance of this class based on the information in the given untyped event.

Method Summary

Methods

Modifier and Type	Method and Description
java.lang.String	toString() Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class org.eclipse.swt.events.TypedEvent

getName

Methods inherited from class java.util.EventObject

getSource

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

character

public char character

the character represented by the key that was typed. This is the final character that results after all modifiers have been applied. For example, when the user types Ctrl+A, the character value is 0x01. It is important that applications do not attempt to modify the character value based on a stateMask (such as SWT.CTRL) or the resulting character will not be correct.

keyCode

public int keyCode

the key code of the key that was typed, as defined by the key code constants in class SWT. When the character field of the event is ambiguous, this field contains the unicode value of the original character. For example, typing Ctrl+M or Return both result in the character '\r' but the keyCode field will also contain '\r' when Return was typed.

See Also:

SWT

keyLocation

public int keyLocation

depending on the event, the location of key specified by the keyCode or character. The possible values for this field are SWT.LEFT, SWT.RIGHT, SWT.KEYPAD, or SWT.NONE representing the main keyboard area.

The location field can be used to differentiate key events that have the same key code and character but are generated by different keys on the keyboard. For example, a key down event with the key code equal to SWT.SHIFT can be generated by the left and the right shift keys on the keyboard.

The location field can only be used to determine the location of the key code or character in the current event. It does not include information about the location of modifiers in the state mask.

Since:

3.6

See Also:

SWT.LEFT, SWT.RIGHT, SWT.KEYPAD

stateMask

public int stateMask

the state of the keyboard modifier keys and mouse masks at the time the event was generated.

See Also:

SWT.MODIFIER_MASK, SWT.BUTTON_MASK

doit

public boolean doit

A flag indicating whether the operation should be allowed. Setting this field to false will cancel the operation.

serialVersionUID

static final long serialVersionUID

See Also:

Constant Field Values

Constructor Detail

KeyEvent

public KeyEvent(Event e)

Constructs a new instance of this class based on the information in the given untyped event.

Parameters:

e - the untyped event containing the information

Method Detail

toString

public java.lang.String toString()

Returns a string containing a concise, human-readable description of the receiver.

Overrides:

toString in class TypedEvent

Returns:

a string representation of the event
